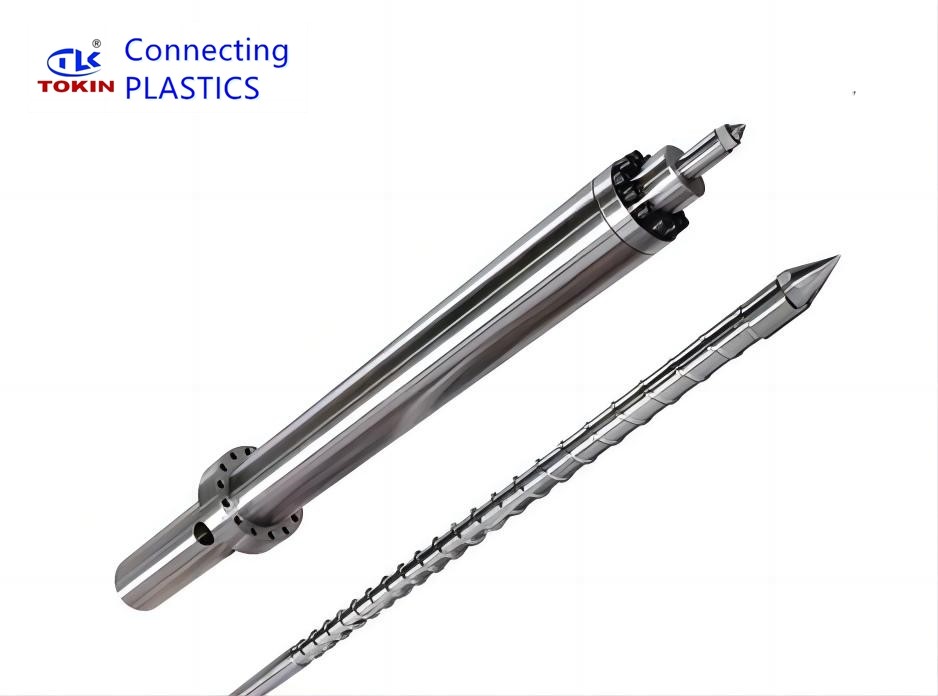

Haitian HTF800 MA800 100mm Injection Moldng Screw Barrel For fruit frame and Fruit crate box

Screw Size: D100x2880mm
Barrel Size: OD255x2830mm

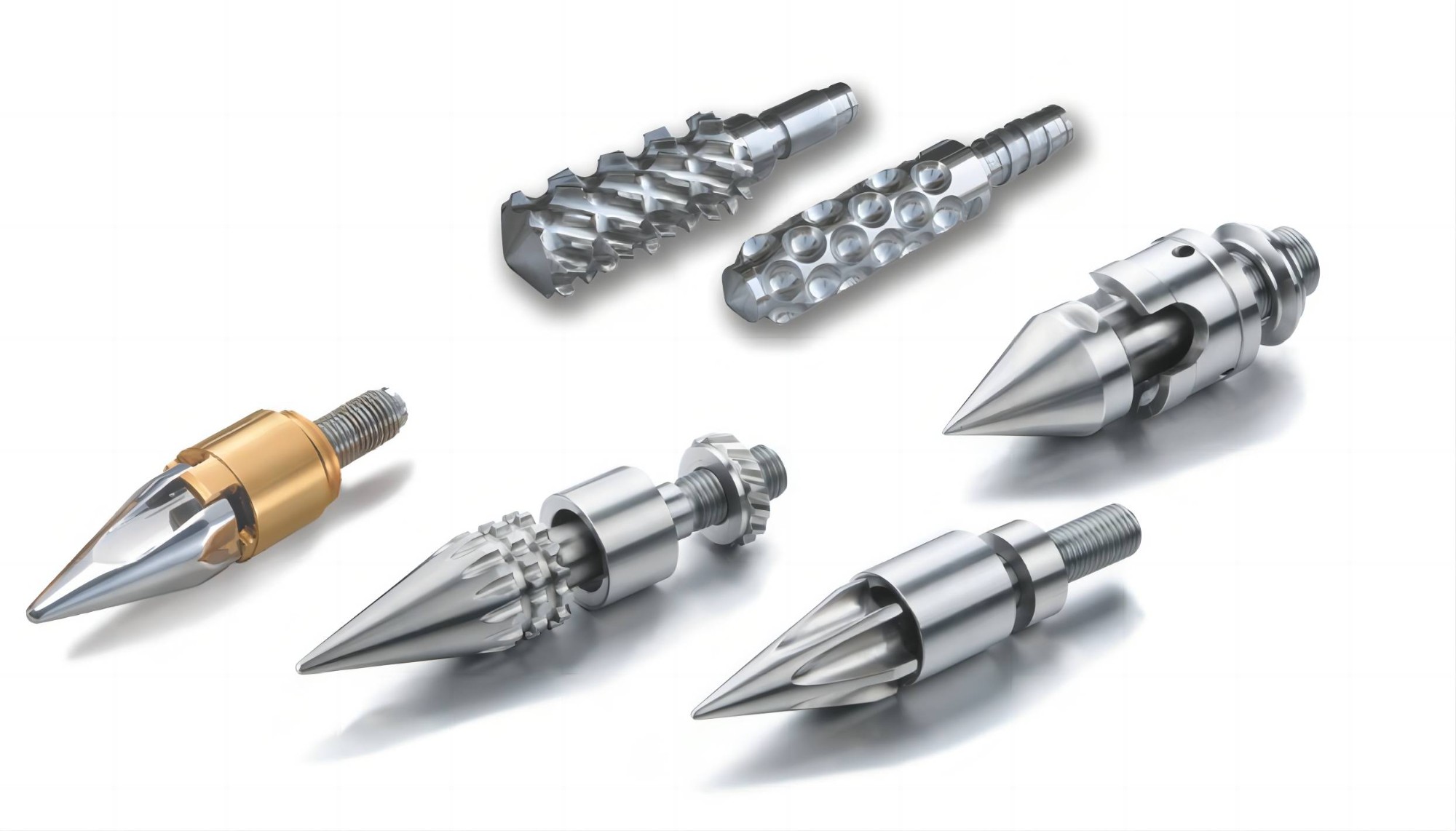

Accessories: Screw head, Rings, Nozzle Head, Cooling Rings
Screw Barrel Set Total Weight: ~ 1120 KG
Delivery time: 25 days
Base Materials: SACM645,SCM440,SKD61
Process: Nitrided & Bimetallic
Hardness: HRC65-HRC70
Suitable for: PP, PE, ABS, PET, PVC, PS ...

Product Description:

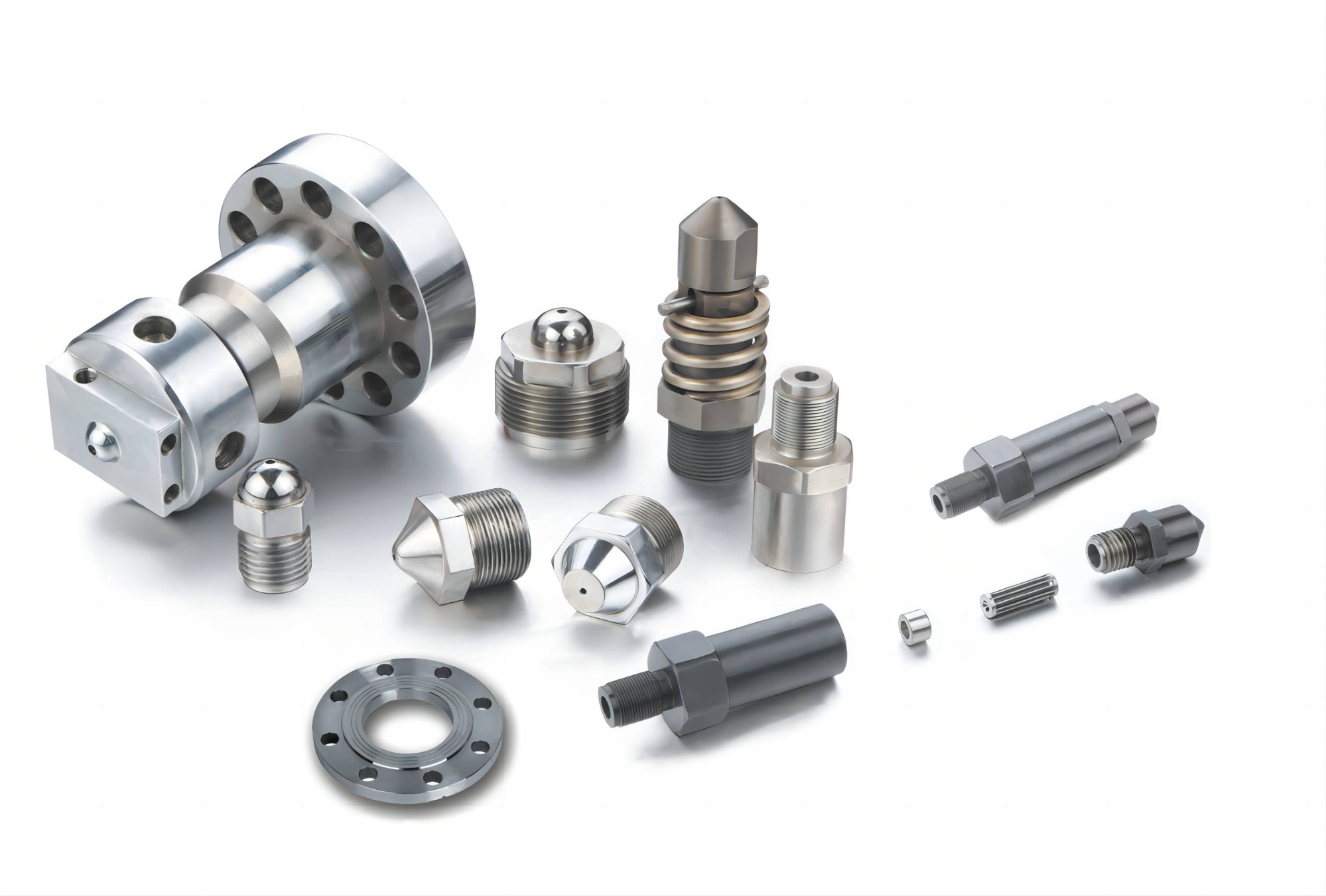

The Complete Injection Molding Parts We Made:

INJECTION UNIT_副本.jpg



Screw Type

Specification

Plastics Application

Characteristics

Bimetallic Screw

SACM645 Steel, top spray weld Tungsten carbide-based alloy

Transparent products, PA6, PA66 and other Engineering materials with fibers

Surface hardness is about HRC60°, Alloy layer thickness is 0.8-2.5mm, and it is wear-resistant

Chromed Screw

plated with Chromium, Titanium

PC/PMMA/PET transparent material,corrosive PVC

The coating is 0.03-0.06mm thick, the hardness is about HRC60°, and it is corrosion resistant

Stainless Steel Screw

Overall quenching hardening

High corrosion-resistanct

The overall hardness is about HRC 55°, and it is corrosion resistant

     SKD61 Screw

SKD61 material, special process treatment

General Purpose Plastics

Good toughness and strong torsion resistance

 Nitride Screw

SACM645 substrate, nitrided

PP, ABS, PS, AS, PVC and other common plastics

Nitriding layer depth is 0.5-0.8mm, and the hardness is HV980-1080


Barrel Material

Process

Hardness

Application

Characteristic

SACM645/38CrMoala

Nitriding

HV 950-1000

General Plastics such as PPPEABSPSASPVC etc

Stable and the cost is low, the corrosion/wear resistance are average.

SCM440/42CrMo

Bimetallic

HRC 58-62

Engineering plastics (such as PA, PBT), PPS, LCP and other highly corrosive or filler plastics with glass fiber

Excellent wear /corrosion resistance,suitable for high wear and corrosive plastics

Stainless Steel

(9Cr18MoV)

Hardening

HRC 55

Suitable for food, medical and other occasions with hygiene requirements, or for processing some plastics with special corrosiveness

Good corrosion resistance, meet hygiene standards.

Materials & Treatments:

⁕Bimetallic Process :


Basis Materials: SACM645, SACM440, SKD61, SKD11

Hardness: 53-58 HRC

Coating Thickness: 1.5-2.0mm

Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%

Wear resistance: ★★★★★

Corrosion resistance: ★★★

⁕Chrome Plating Process:


Basis Materials: SACM645, SACM440, SKD61, SKD11

Chrome Thickness: 0.02-0.08mm

Hardness of Chrome: >700 HV

Finish Grade: Ra ≤0.4

Allication: PVC and other high corrosive plastics

Wear resistance: ★★

Corrosion resistance: ★★★★★


⁕Full Hardened Process:


Basis Materials: DC53, D2, M2, SKD61, SKD11 ...

Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni

Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)

Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%

Wear resistance: ★★★★★

Corrosion resistance: ★★★★★




FAQS:


Q: When will you arrange the production?
A: We can arrange production soon after order & drawings confirmation

Q: What is your delivery time ?
A: Standard delivery time is 20-25 days, if the screw's diameter is less than 50mm, the delivery time can be 15-20 days

Q: What is your accepted payment type?
A: T/T

Q: What logistic forwarder do you usually work with?
A: EMS, TNT, UPS, FEDEX and other high-efficient logistric forwarders

Q: What is your warranty Time ?
A: 12 months when shipment on board
