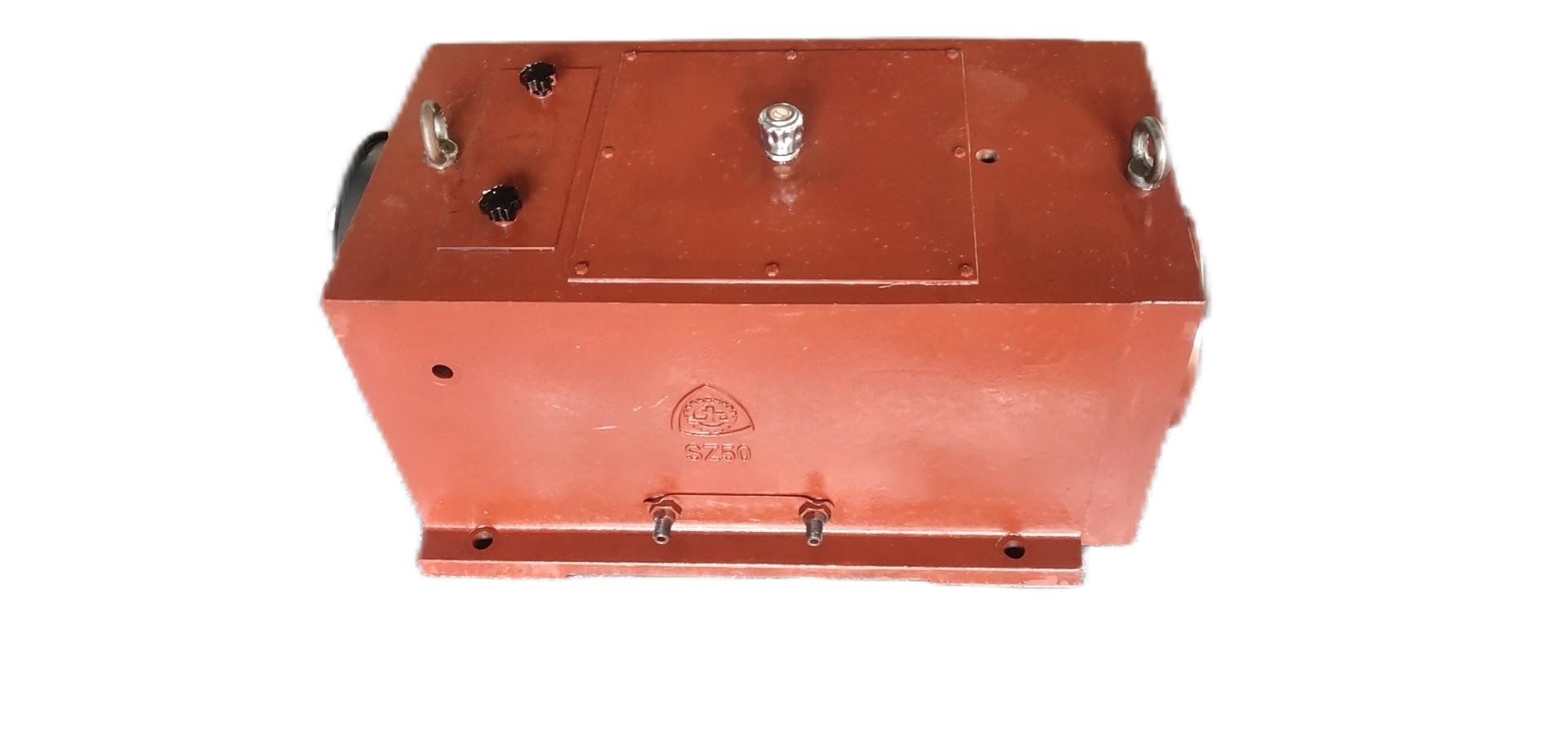

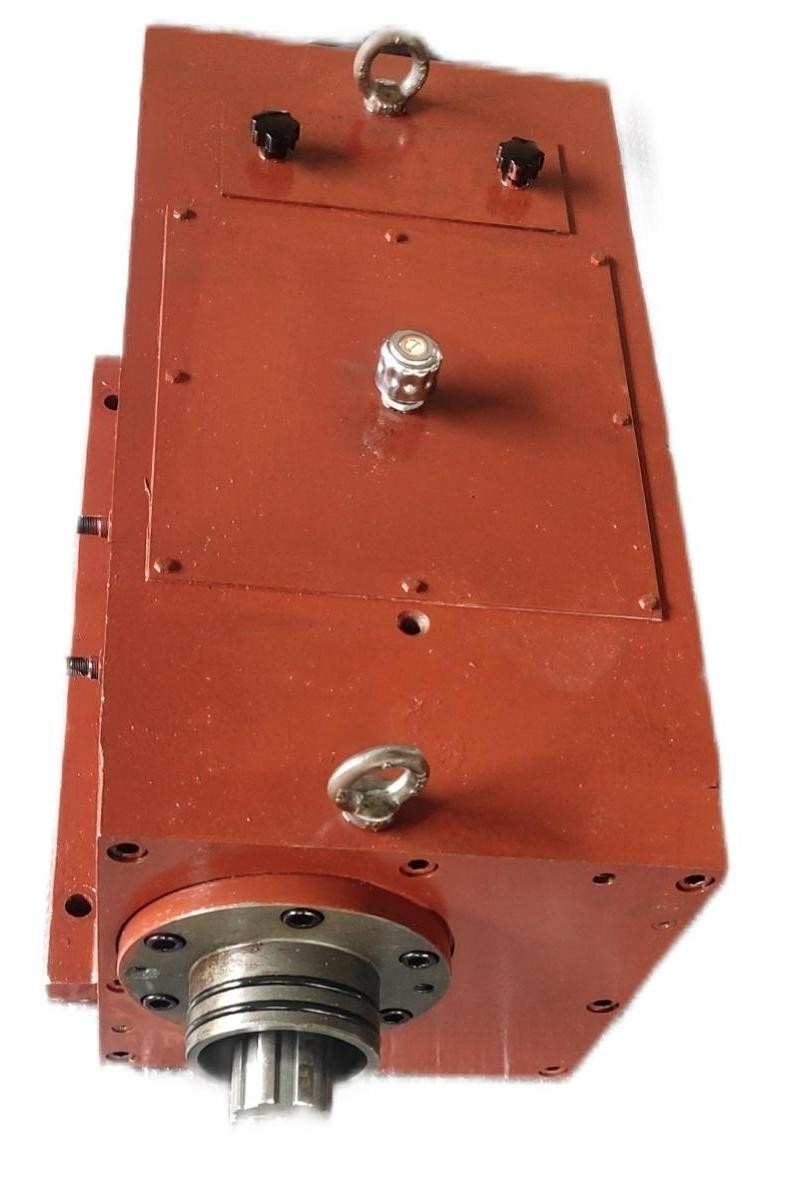

Supplying SZ55 Gearbox Gear Reducer and Transmission Set For Conical Twin Extruder Supplying SZ55 Gearbox Gear Reducer and Transmission Set For Conical Twin Extruder

Supplying SZ55 Gearbox Gear Reducer and Transmission Set For Conical Twin Extruder

Application for: Conical Twin Screw Extruder
Input Rotation Speed: 1500
Output Speed: 37.5
Input Power (KW) : 30
Delivery Time: 1-7 Days

Product Description:



Model

SZ45

SZ50

SZ55

SZ65

SZ80

SZ92

Input Rotation Speed

1500

1500

1500

1500

1500

1500

Output Speed

44.8

37.8

37.5

39.1

37.7

40

Input Power (KW)

18.5

22

30

37

55

110

Single shaft output Torque

1972

2779

3820

4518

6786

13130

Distribution Axis

2 40'

2 58'12

2 36'14

2 11'16

2 0'18"

1 52'3.64"

Connection Spline Dimensions

8-48x42x8

8-54x46x9

6-60x53x14

8-65x56x10

8-72x62x12

10-98x92x14



SZ series hard tooth surface transmission device is composed of reducer and distributor. It is a specialized product for all kinds of conical twin screw extruders.

1. The gears of the reducer are made of high-strength alloy steel and carburized steel, gear hardness is high to HRC58-62, and the operating noise is low.

2. The small cone angle helical gears of the gear box are made of high-quality alloy steel. After being ground by a CNC gear hobbing machine, the gears are carburized and quenched to ensure high precision and high hardness.

3. The ductile iron shell and high-strength spherical thrust roller bearings make the project operate stably and withstand large axial thrust.

4. The reducer and distributor are equipped with cooling systems and can operate safely.
