32mm Injection Moulding Screw Barrels for Nissei FNX series FNX80-9A Horizontal injection molding machine

32mm Injection Moulding Screw Barrels for Nissei FNX series FNX80-9A Horizontal injection molding machine

Screw Size：32mm

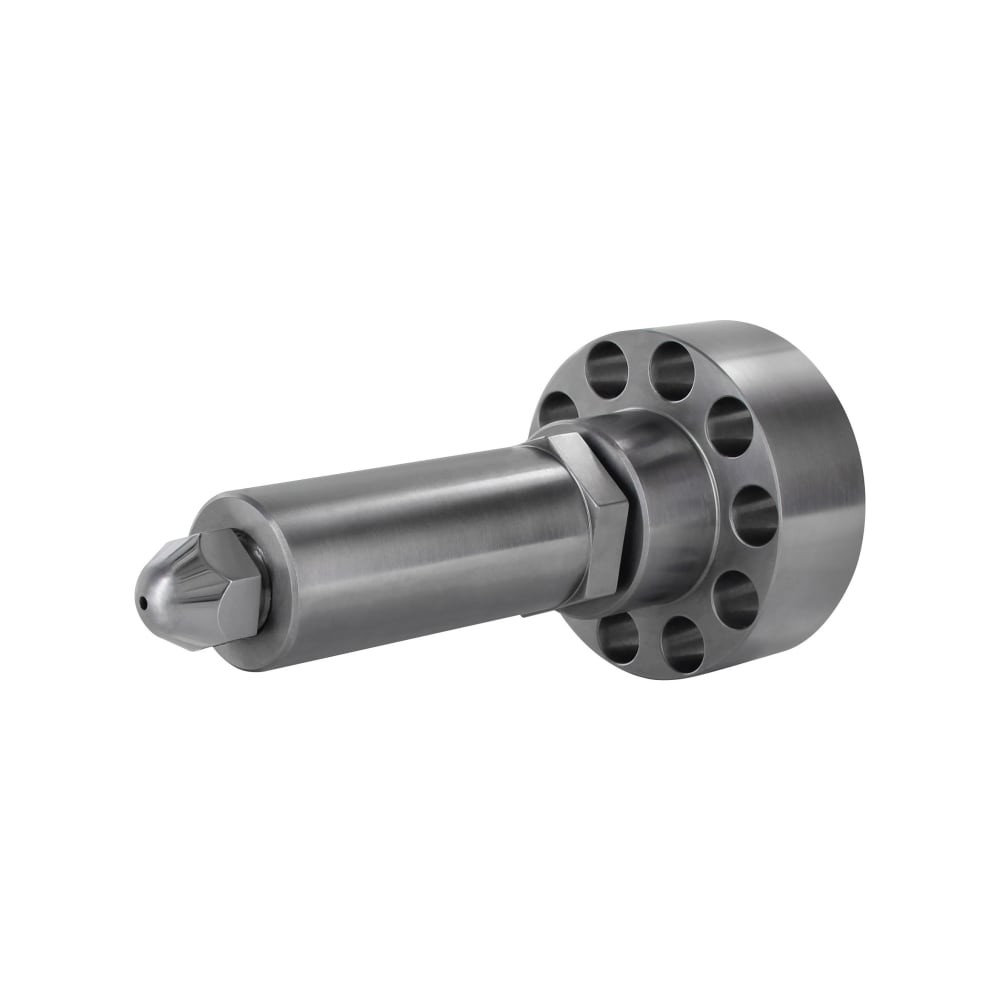

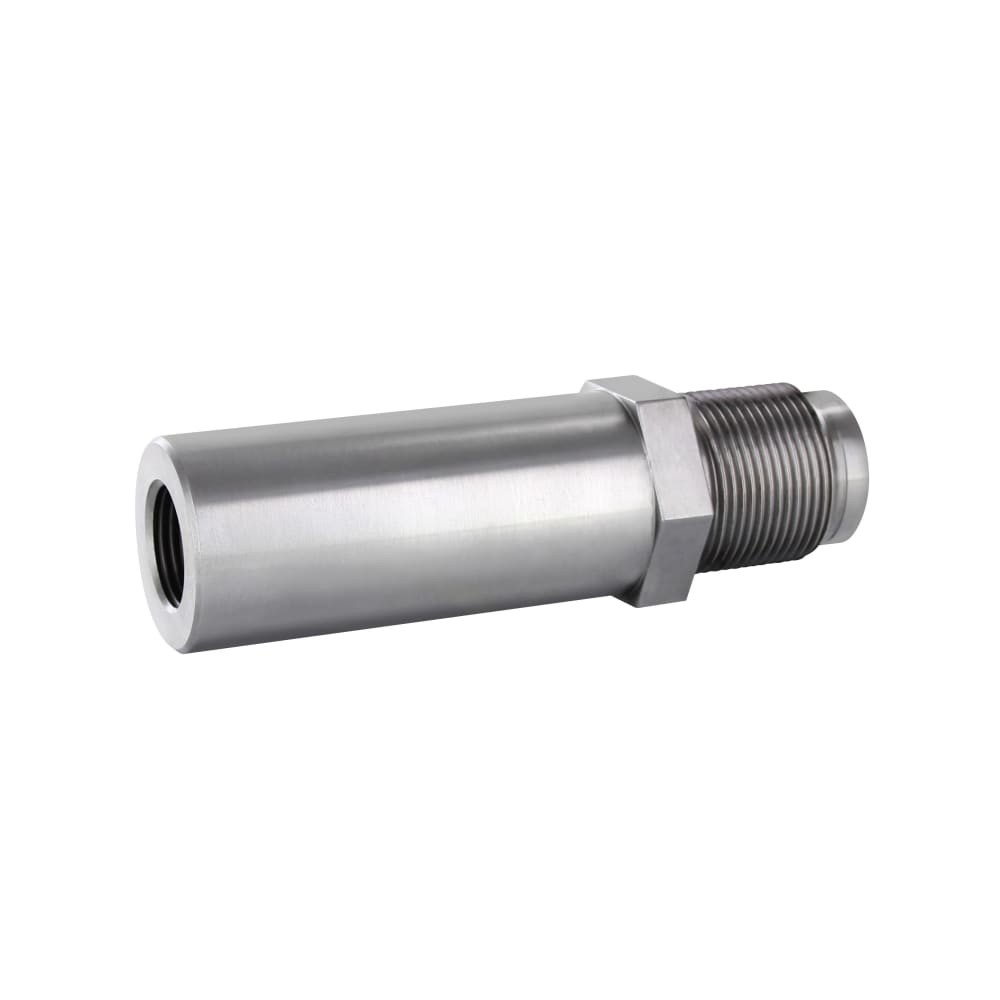

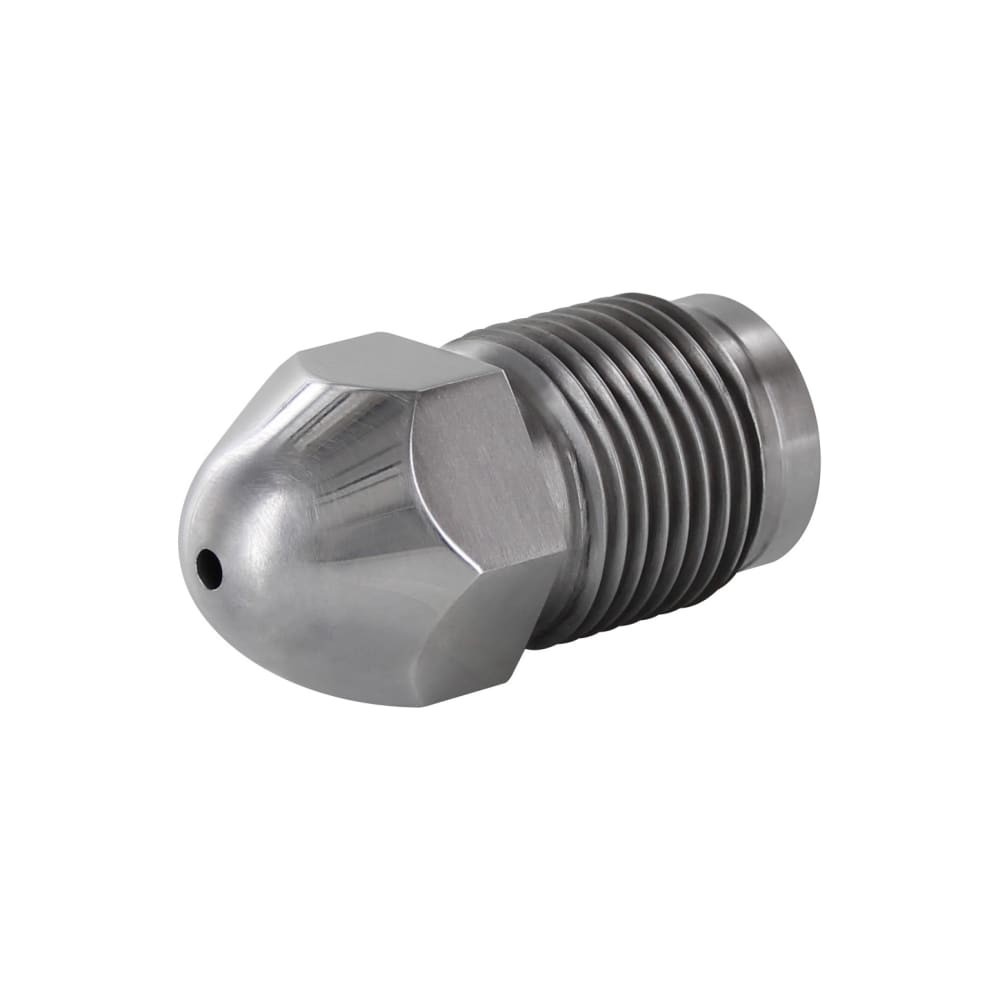

Accessories: Screw head, Rings, Nozzle Tip Set
Base Materials: SACM645,SCM440,SKD61 Steel
Process: Nitrided & Bimetallic & Chrome ...
Hardness: HRC55-65
Suitable for: PP, PE, ABS, PET, PVC, PS ...
Delivery time: 20-25 days

Product Description:

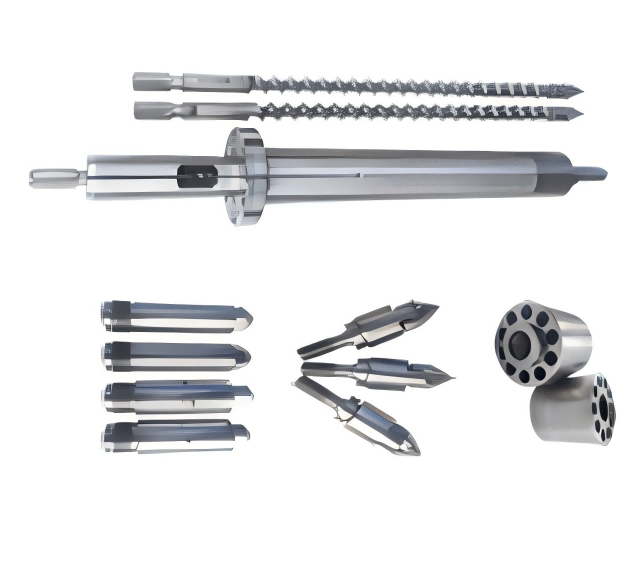

The Standard Injection Molding Parts List We Make and Send：

INJECTION UNIT_副本.jpg

Screw Type	Specification	Plastics Application	Characteristics
Bimetallic Screw	SACM645 Steel, top spray weld Tungsten carbide-based alloy	Transparent products, PA6, PA66 and other Engineering materials with fibers	Surface hardness is about HRC60°, Alloy layer thickness is 0.8-2.5mm, and it is wear-resistant
Chromed Screw	plated with Chromium, Titanium	PC/PMMA/PET transparent material,corrosive PVC	The coating is 0.03-0.06mm thick, the hardness is about HRC60°, and it is corrosion resistant
Stainless Steel Screw	Overall quenching hardening	High corrosion-resistanct	The overall hardness is about HRC 55°, and it is corrosion resistant
SKD61 Screw	SKD61 material, special process treatment	General Purpose Plastics	Good toughness and strong torsion resistance
Nitride Screw	SACM645 substrate, nitrided	PP, ABS, PS, AS, PVC and other common plastics	Nitriding layer depth is 0.5-0.8mm, and the hardness is HV980-1080

Barrel Material	Process	Hardness	Application	Characteristic
SACM645/38CrMoala	Nitriding	HV 950-1000	General Plastics such as PP、PE、ABS、PS、AS、PVC etc	Stable and the cost is low, the corrosion/wear resistance are average.
SCM440/42CrMo	Bimetallic	HRC 58-62	Engineering plastics (such as PA, PBT), PPS, LCP and other highly corrosive or filler plastics with glass fiber	Excellent wear /corrosion resistance,suitable for high wear and corrosive plastics
Stainless Steel (9Cr18MoV)	Hardening	HRC 55	Suitable for food, medical and other occasions with hygiene requirements, or for processing some plastics with special corrosiveness	Good corrosion resistance, meet hygiene standards.

Materials & Treatments：

⁕Bimetallic Process ：

Basis Materials: SACM645, SACM440, SKD61, SKD11

Hardness: 53-58 HRC

Coating Thickness: 1.5-2.0mm

Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%

Wear resistance: ★★★★★

Corrosion resistance: ★★★

⁕Chrome Plating Process:

Basis Materials: SACM645, SACM440, SKD61, SKD11

Chrome Thickness: 0.02-0.08mm

Hardness of Chrome: >700 HV

Finish Grade: Ra ≤0.4

Allication: PVC and other high corrosive plastics

Wear resistance: ★★

Corrosion resistance: ★★★★★

⁕Full Hardened Process：

Basis Materials: DC53, D2, M2, SKD61, SKD11 ...

Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni

Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)

Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%

Wear resistance: ★★★★★

Corrosion resistance: ★★★★★


FAQS：

Q: Which models' drawings do you have ?
A: We have a complete database of drawings, please tell us the machine name and model, then we can check database and quote.

Q: When will you arrange the production?
A: We can arrange production soon after order & drawings confirmation

Q: What is your delivery time ?
A: Standard delivery time is 20-25 days, if the screw's diameter is less than 50mm, the delivery time can be 15-20 days

Q: What is your accepted payment type?
A: T/T

Q: What logistic forwarder do you usually work with?
A: EMS, TNT, UPS, FEDEX and other high-efficient logistric forwarders

Q: What is your warranty Time ?
A: 12 months when shipment on board
