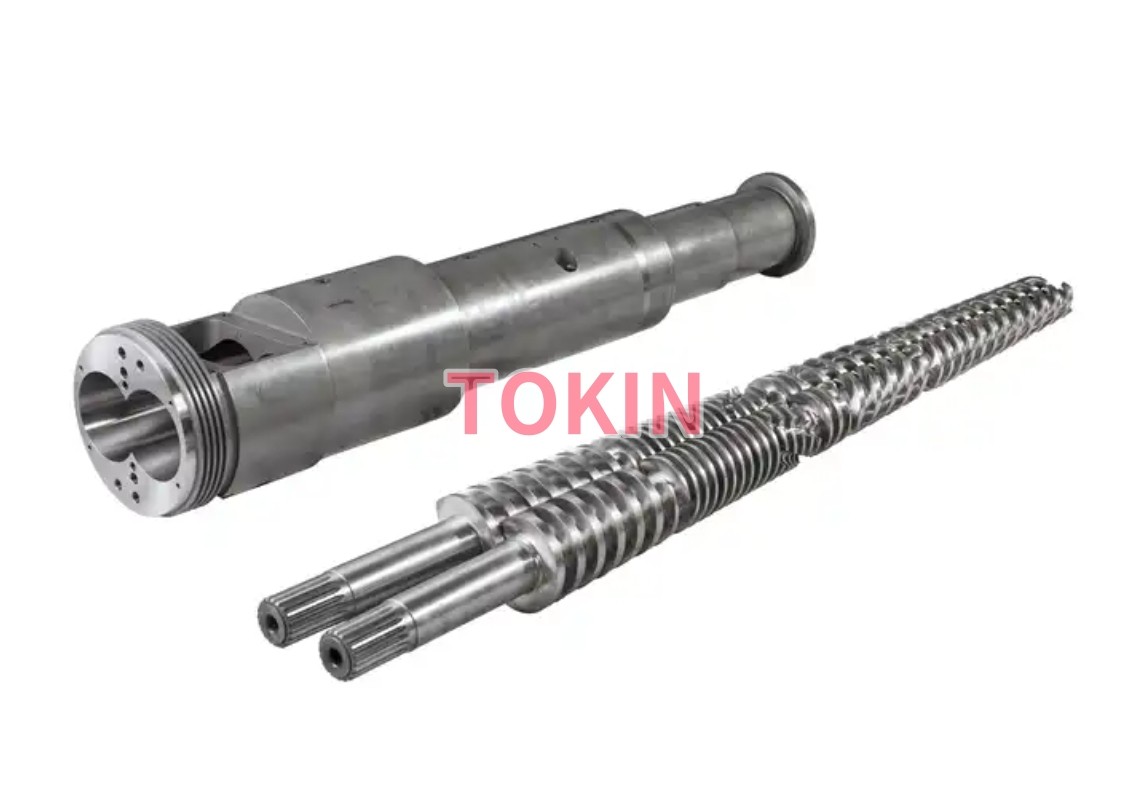

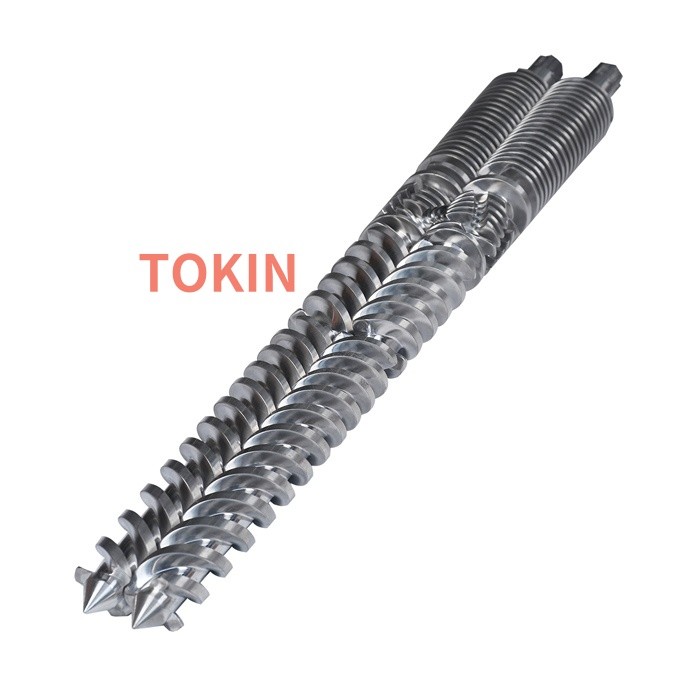

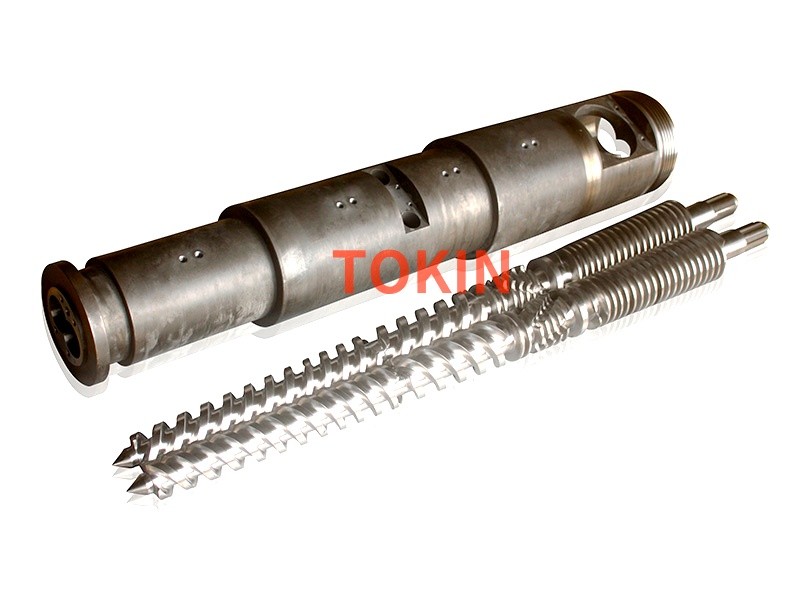

51-105 Conical Twin Screw Barrel For CINCINNATI KRUSS MAFFEI Twin PVC Extruder

51-105 Conical Twin Screw Barrel For CINCINNATI KRUSS MAFFEI Twin PVC Extruder

Size: 55/110, 60/125, 65/132, 70/140, 75/150, 80/156, 92/188
Applicated machine:CINCINNATI, BATTENFELD, KRUSS MAFFEI,BAUSANO
Applied Plastics & Products: PP,PE,ABS,PVC,Pelleting,Pipe,Profile,Sheet,WPC,PVC,Soft PVC etc
Delivery Time: 7-15 days
Base Materials: SACM645,SCM440
Treatment: Nitrided/Bimetallic/Chrome-Plating
Hardness: HRC65-HRC70
Warranty Time: 12 Months

Product Description:

Screw Dia	Motor (kW)	Screw Speed (rpm)	Output（kg/h）	Application
35/75	7.5	≤80	~40	Small pipes extrusion, experimental research
45/90	15	1–37	30–60	PVC profiles extrusion, thin-walled pipes extrusion
51/105	18.5	≤32	50–120	Medium/low production capacity profiles extrusion
55/110	22	1–34.7	80–150	PVC pipes, plates extrusion
65/132	37	1–36.9	80–300	Standard Pipe/Profile extrusion
80/156	55	1–36.9	320–450	High yield plates, pelletizing
92/188	90–110	1–32.9	500–650	Large pipes extrusion and thick-walled products
105/216	145	≤38	≤800	Super-large industrial production line


Our Twin conical screw barrels are designed to endure high wear, corrosion, and thermal stresses in plastic extrusion. Common materials include:

•Alloy Steel:

•38CrMoAlA: A nitrided steel favored for its strength, toughness, and wear resistance. Nitriding achieves surface hardness of HV850-1000.

•42CrMo: Used for high torque and durability.

•304 Stainless Steel: Chosen for corrosion resistance, ideal for processing corrosive materials like PVC.

•Bimetallic Coatings: Nickel-based or tungsten coatings enhance wear and corrosion resistance, especially for abrasive or corrosive polymers.

•Surface Treatments:

•Nitriding: Boosts surface hardness (HB280-320, HV920-1000) and wear resistance, with a depth of 0.45-0.80 mm.

•Chrome Plating: Reduces adhesion and corrosion, typically 0.025-0.10 mm thick.

•Molybdenum/Tungsten Coatings: Protect screw flights, extending lifespan for high-filler or regrind materials.

FAQS：

Q: When will you arrange the production?
A: We can arrange the production after order & drawings confirmation

Q: What is your factory delivery time ?
A: Standard delivery time is 20-25 days

Q: What is your accepted payment type?
A: T/T

Q: What logistic forwarder do you usually work with?
A: We work with UPS, TNT, FEDEX, SF and other logistric forwarders. Assigned your own forwarder for shipment is available.

Q: What is your warranty Time ?
A: Our warranty time is 12 months when shipment on board
