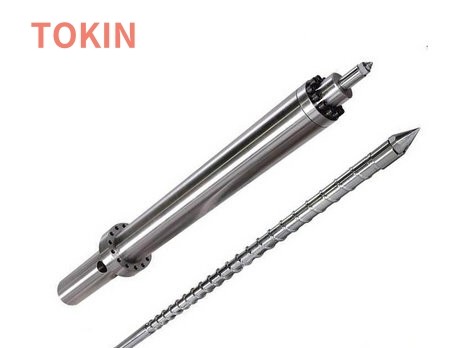

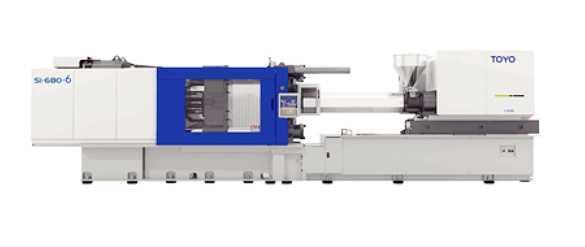

60mm Screw Barrel With Nozzle Tip Set For Toyo-450T All-Electric Injection Molding Machine

60mm Screw Barrel With Nozzle Tip Set For Toyo-450T All-Electric Injection Molding Machine

Screw Size: 60mm

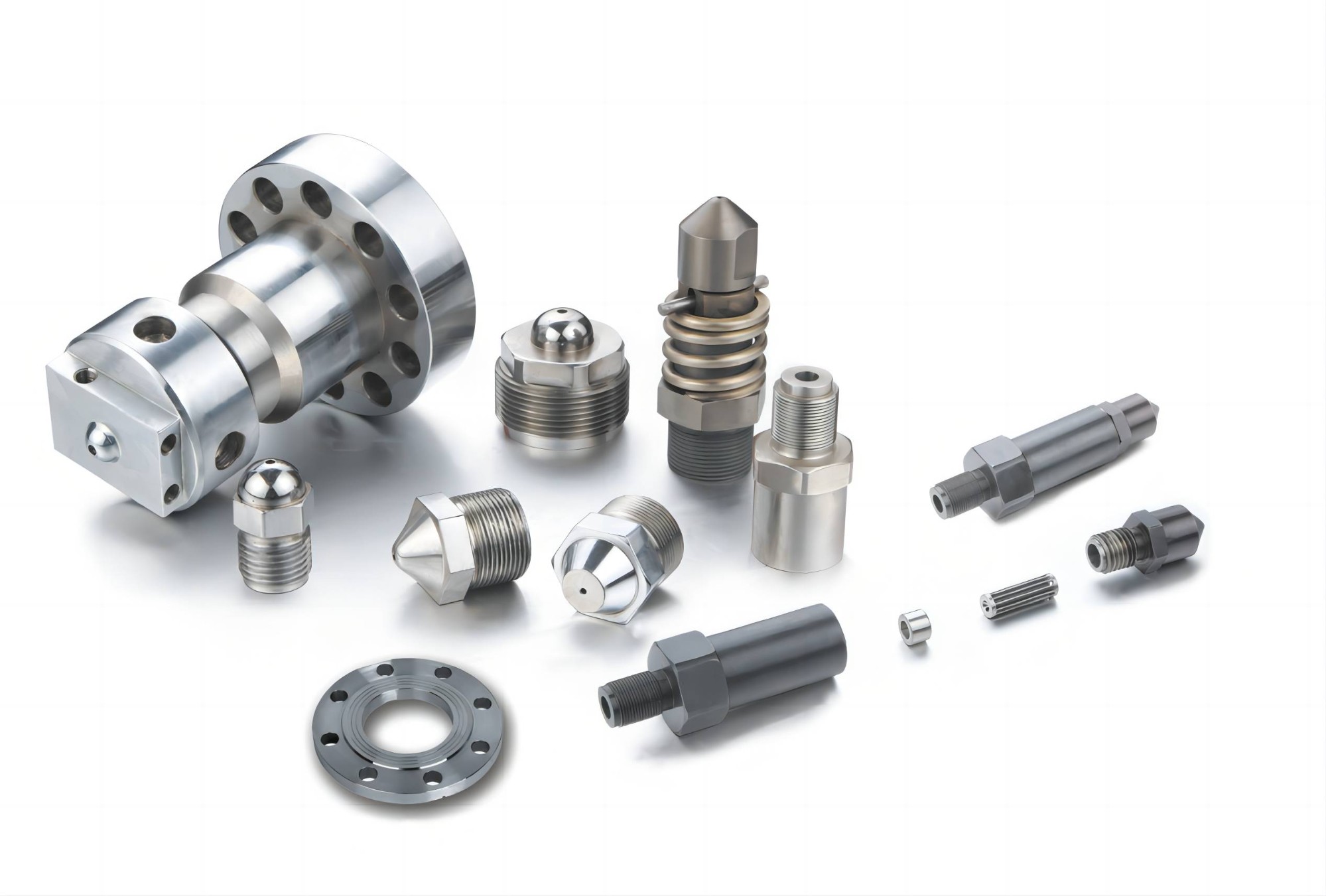

Accessories: Screw head, Rings, Nozzle Head, Cooling Rings
Delivery time: 20-25 days
Base Materials: SACM645,SCM440,SKD61
Treatment: Nitrided & Bimetallic
Hardness: HRC65-HRC70
Warantty Time: 12 Months for plastics with GF≤35%
Suitable for: PP, PE, ABS, PET, PVC, PS ...

Product Description:

Tech Specification：


Screw Type	Specification	Plastics Application	characteristics
Bimetallic Screw	SACM645 Steel, top spray weld Tungsten carbide-based alloy	Transparent products, PA6, PA66 and other Engineering materials with fibers	Surface hardness is about HRC60°, Alloy layer thickness is 0.8-2.5mm, and it is wear-resistant
Chromed Screw	plated with Chromium, Titanium	PC/PMMA/PET transparent material,corrosive PVC	The coating is 0.03-0.06mm thick, the hardness is about HRC60°, and it is corrosion resistant
Stainless Steel Screw	Overall quenching hardening	High corrosion-resistanct	The overall hardness is about HRC 55°, and it is corrosion resistant
SKD61 Screw	SKD61 material, special process treatment	General Purpose Plastics	Good toughness and strong torsion resistance
Nitride Screw	SACM645 substrate, nitrided	PP, ABS, PS, AS, PVC and other common plastics	Nitriding layer depth is 0.5-0.8mm, and the hardness is HV980-1080

Materials & Treatments：

⁕Bimetallic Process ：

Basis Materials: SACM645, SACM440, SKD61, SKD11

Hardness: 53-58 HRC

Coating Thickness: 1.5-2.0mm

Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%

Wear resistance: ★★★★★

Corrosion resistance: ★★★

⁕Chrome Plating Process:

Basis Materials: SACM645, SACM440, SKD61, SKD11

Chrome Thickness: 0.02-0.08mm

Hardness of Chrome: >700 HV

Finish Grade: Ra ≤0.4

Allication: PVC and other high corrosive plastics

Wear resistance: ★★

Corrosion resistance: ★★★★★

⁕Full Hardened Process：

Basis Materials: DC53, D2, M2, SKD61, SKD11 ...

Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni

Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)

Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%

Wear resistance: ★★★★★

Corrosion resistance: ★★★★★


FAQS：

Q: When will you arrange the production?
A: We can arrange production soon after order & drawings confirmation

Q: What is your delivery time ?
A: Standard delivery time is 20-25 days, if the screw's diameter is less than 50mm, the delivery time can be 15-20 days

Q: What is your accepted payment type?
A: T/T

Q: What logistic forwarder do you usually work with?
A: EMS, TNT, UPS, FEDEX and other high-efficient logistric forwarders

Q: What is your warranty Time ?
A: 12 months when shipment on board

Customers Machinery List :

Haitian Injection Molding Systems	ChenHsong Injection Molding Systems	Hwamda Injection Molding Systems
Yizumi Injection Molding Systems	Nissei Injection Molding Systems	TOYO Injection Molding Systems
Toshiba Injection Molding Systems	Borche Injection Molding Systems	Haida Injection Molding Systems
JSW Injection Molding Systems	Arburg Injection Molding Systems	Engel Injection Molding Systems
Krauss Maffei Injection Molding Systems	Battenfeld Extrusion Systems	Tederic Injection Molding Systems
Cincinatti Milacron Injection Systems	Kawaguchi Injection Molding Systems	Jwell Extrusion Systems
Sumitomo Injection Molding Systems	Tederic Injection Molding Systems	Fanuc Injection Molding Systems
Haixing Injection Molding System	FCS Injection Molding System
