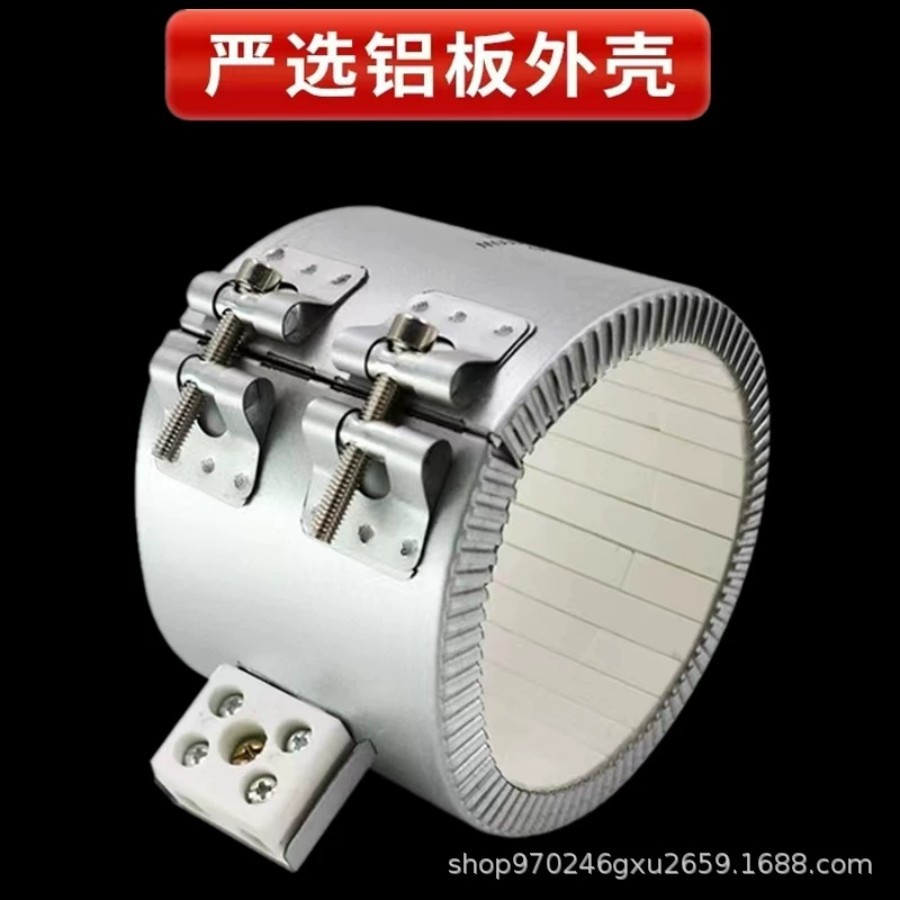

Ceramic Heating Bands and Barrel Heaters for Plastic Machinery

Heater Material: Stainless Steel / Copper / Aluminum
Inner Diameter: Customized
Width: Customized
Rated Voltage: 110V / 220V / 230V / 240V / 380V
Rated Power: Customized
Maximum Temperature: Up to 650°C
Insulation Resistance: ≥100 MΩ
Lead Time : 5-7 days

10 $ - 500 $

Product Description:

heating bands series.jpg

heating bands heater 2.jpg

heating bands heater 11.jpg

Product Attribute	Typical Options / Description
Product Type	Band Heater / Barrel Heater / Heating Ring
Application	Injection Molding Machines / Extrusion Machines / Plastic Processing Machinery

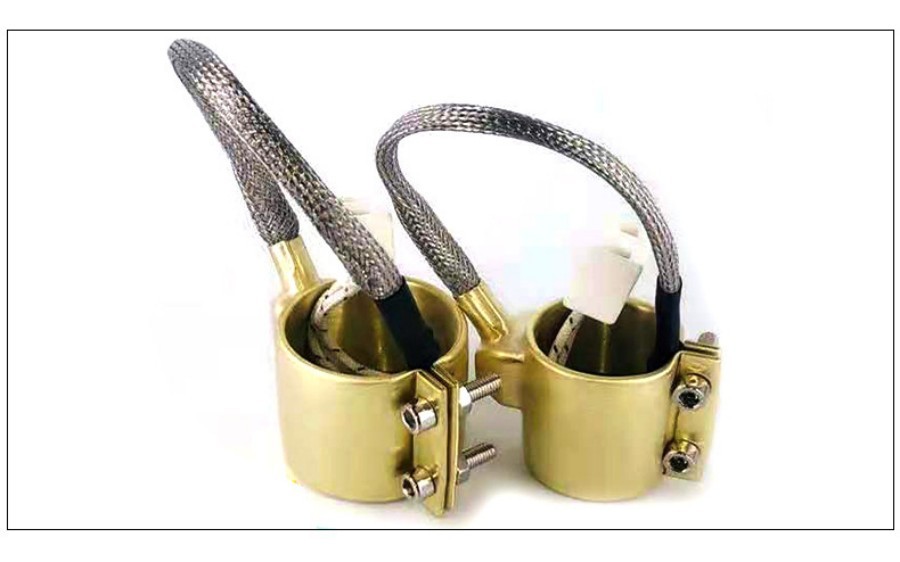

Heater Type	Ceramic Band Heater / Mica Band Heater / Copper Band Heater / Aluminum Band Heater
Heating Method	Electric Resistance Heating
Material	Stainless Steel / Copper / Aluminum / Ceramic / Mica
Inner Diameter	Customized according to barrel diameter
Height / Width	Customized
Rated Voltage	110V / 220V / 230V / 240V / 380V
Rated Power	Customized according to size and application
Maximum Operating Temperature	Up to 650°C, depending on heater type
Insulation Resistance	≥100 MΩ
Temperature Control	Thermocouple / Temperature Controller compatible
Electrical Connection	Lead Wire / Terminal / Connector / Customized
Terminal Position	Customized according to machine installation
Heating Zone	Single Zone / Multi-Zone
Heating Area	Full Coverage / Partial Coverage
Heating Efficiency	Fast Heating / Uniform Heating
Surface Finish	Polished / Stainless Steel Finish / Customized
Installation	Clamping / Bolting / Customized Mounting
Machine Compatibility	Sumitomo / FANUC / Haitian / Engel / Arburg / Others
Application Temperature	Plastic Processing / Barrel Heating / Die Heating
