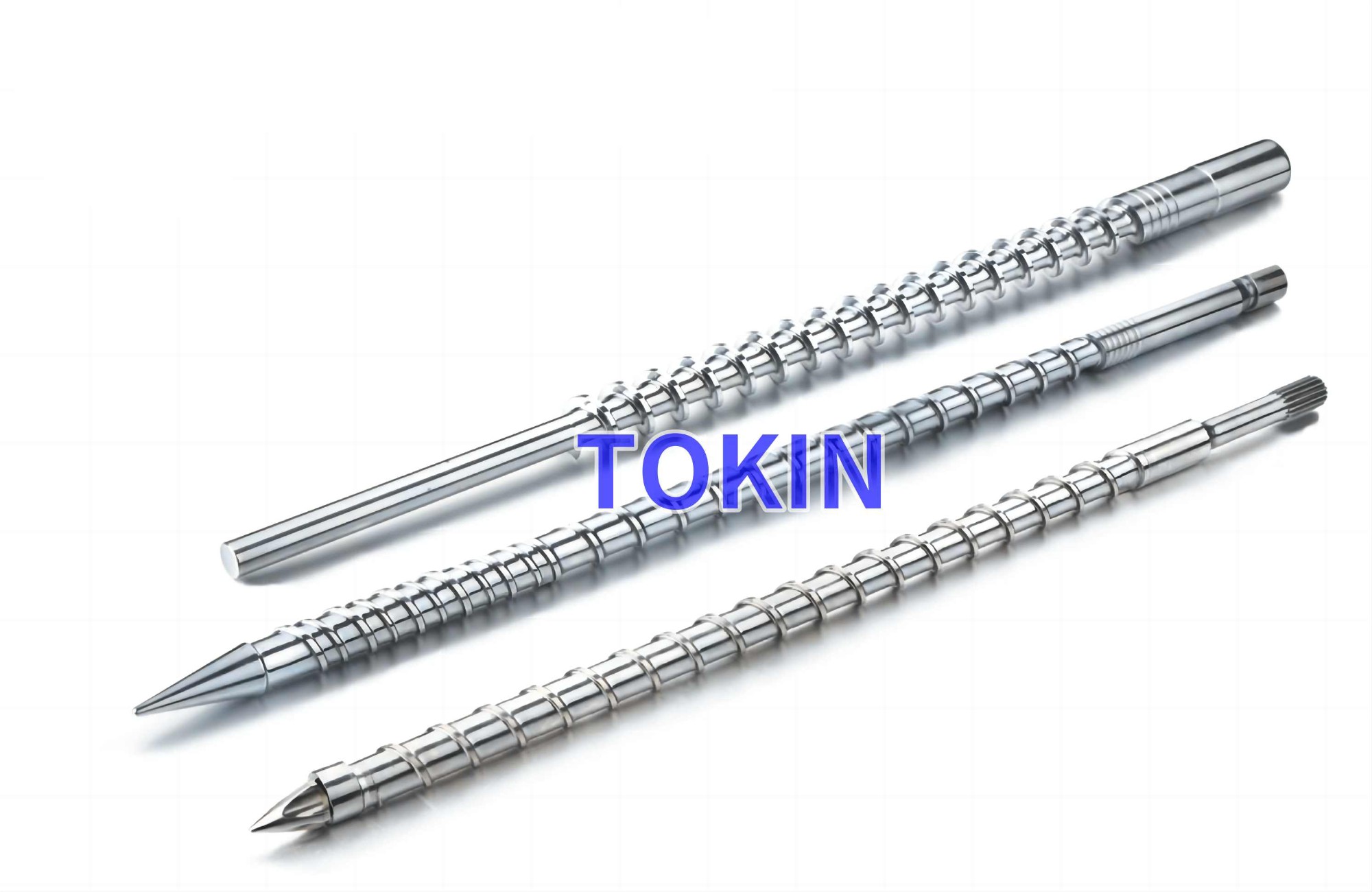

Customized 40mm Nissei 30T NEX30 Injection Unit Injection Molding Screw and Barrel

Screw Size: 40mm

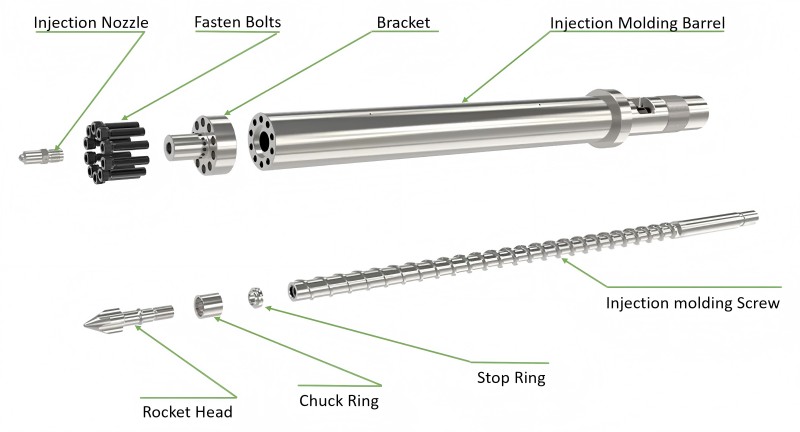

Accessories: Screw head, Rings, Nozzle Head, Cooling Rings
Delivery time: 20-25 days
Base Materials: SACM645,SCM440,SKD61
Treatment: Nitrided & Bimetallic
Hardness: HRC65-HRC70
Suitable for: PP, PE, ABS, PET, PVC, PS ...

Product Description:

Customized Nissei Models :

NC8000/NC8000FG/NC8300/NC8300F/NC9000/NC9000G/NEX110/NEX15/NEX30/NEX180/NEX460/NEX50/NEX140/NEX220/NEX360/FNX80/FNX110/FNX140/FNX280/FNX220/FNX180/FNX360/NEX460III-140LE/ NEX460III-210LE/PNX40-2A/ PNX40-5A/PNX60-5A/PNX40III-2A/PNX40III-5A/ PNX60III-5A


Nissei Injection Molding Screw diameters: 14mm, 16mm, 19mm, 22mm, 26mm, 28mm, 32mm,  36mm, 38mm, 40mm,  45mm, 50mm, 56mm, 63mm, 64mm, 71mm, 75mm, 80mm, 90mm, 100mm, 112mm, 120mm, 125mm, 135mm, 150mm


NISSEI- NEX300-Screw diameter: 40MM

Tech Introduction:

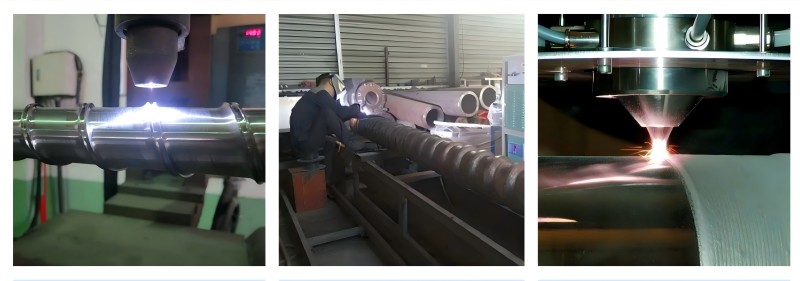

⁕Bimetallic Process :


Basis Materials: SACM645, SACM440, SKD61, SKD11

Hardness: 53-58 HRC

Coating Thickness: 1.5-2.0mm

Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%

Wear resistance: ★★★★★

Corrosion resistance: ★★★

⁕Chrome Plating Process:


Basis Materials: SACM645, SACM440, SKD61, SKD11

Chrome Thickness: 0.02-0.08mm

Hardness of Chrome: >700 HV

Finish Grade: Ra ≤0.4

Allication: PVC and other high corrosive plastics

Wear resistance: ★★

Corrosion resistance: ★★★★★


⁕Full Hardened Process:


Basis Materials: DC53, D2, M2, SKD61, SKD11 ...

Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni

Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)

Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%

Wear resistance: ★★★★★

Corrosion resistance: ★★★★★

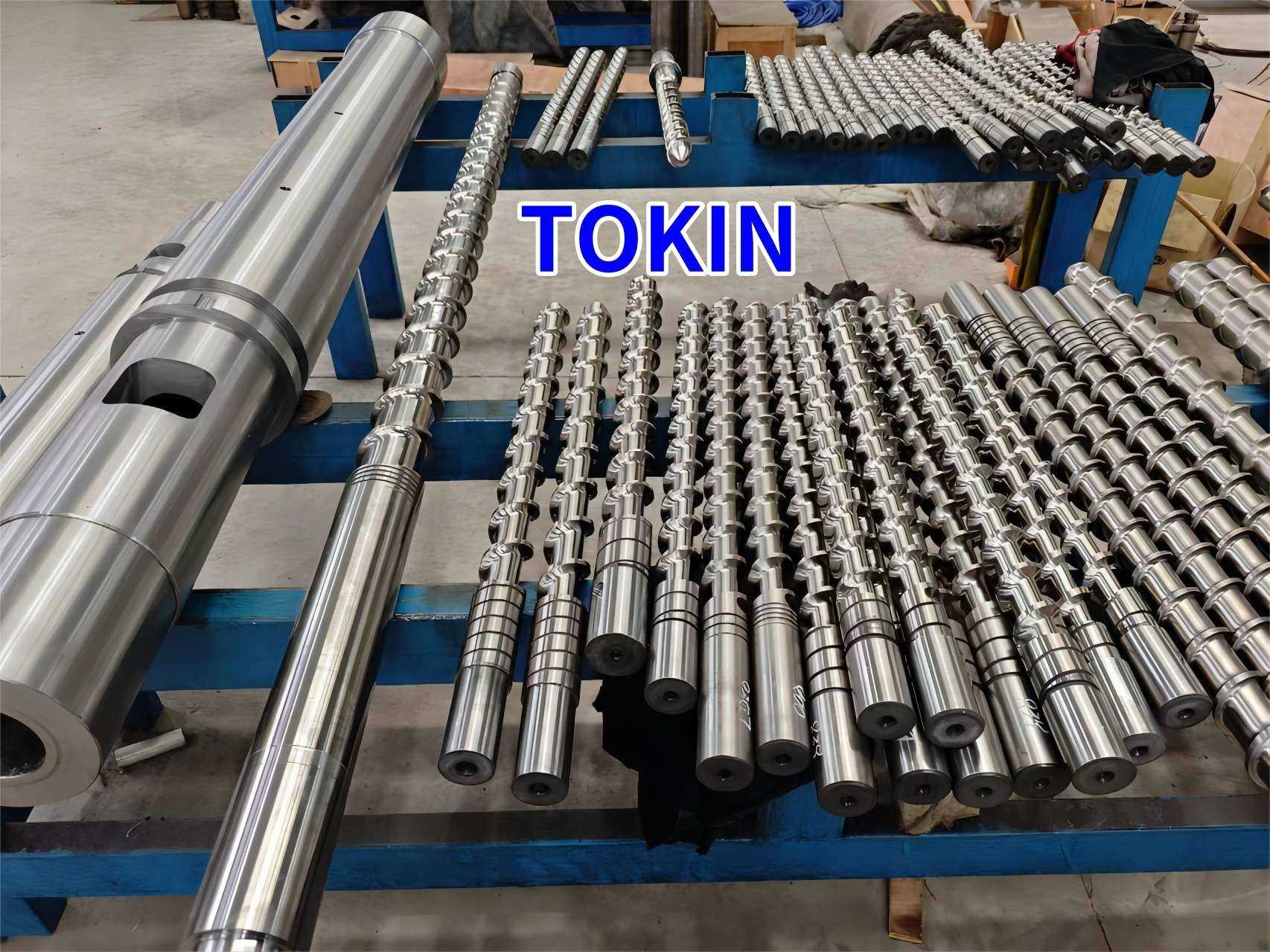

We manufacturing and offering screw barrels for :

Haitian Injection Molding SystemsChenHsong Injection Molding SystemsHwamda Injection Molding Systems
Yizumi Injection Molding SystemsNissei Injection Molding SystemsTOYO Injection Molding Systems
Toshiba Injection Molding SystemsBorche Injection Molding Systems
Haida Injection Molding Systems
JSW Injection Molding Systems
Arburg Injection Molding SystemsEngel Injection Molding Systems
Krauss Maffei Injection Molding Systems
Battenfeld Extrusion SystemsTederic Injection Molding Systems
Cincinatti Milacron Injection Systems Kawaguchi Injection Molding SystemsJwell Extrusion Systems
Sumitomo Injection Molding SystemsTederic Injection Molding Systems
Fanuc Injection Molding Systems
Haixing  Injection Molding System


Shipment:

1. The delivery time of Injection Molding screw barrel is usually 20-25 days after drawings are confirmed.

2. Faster air shipment can by TNT, SF, FedEx, DHL, UPS, EMS and etc.

3. Standard Packages are high quality wooden cases
