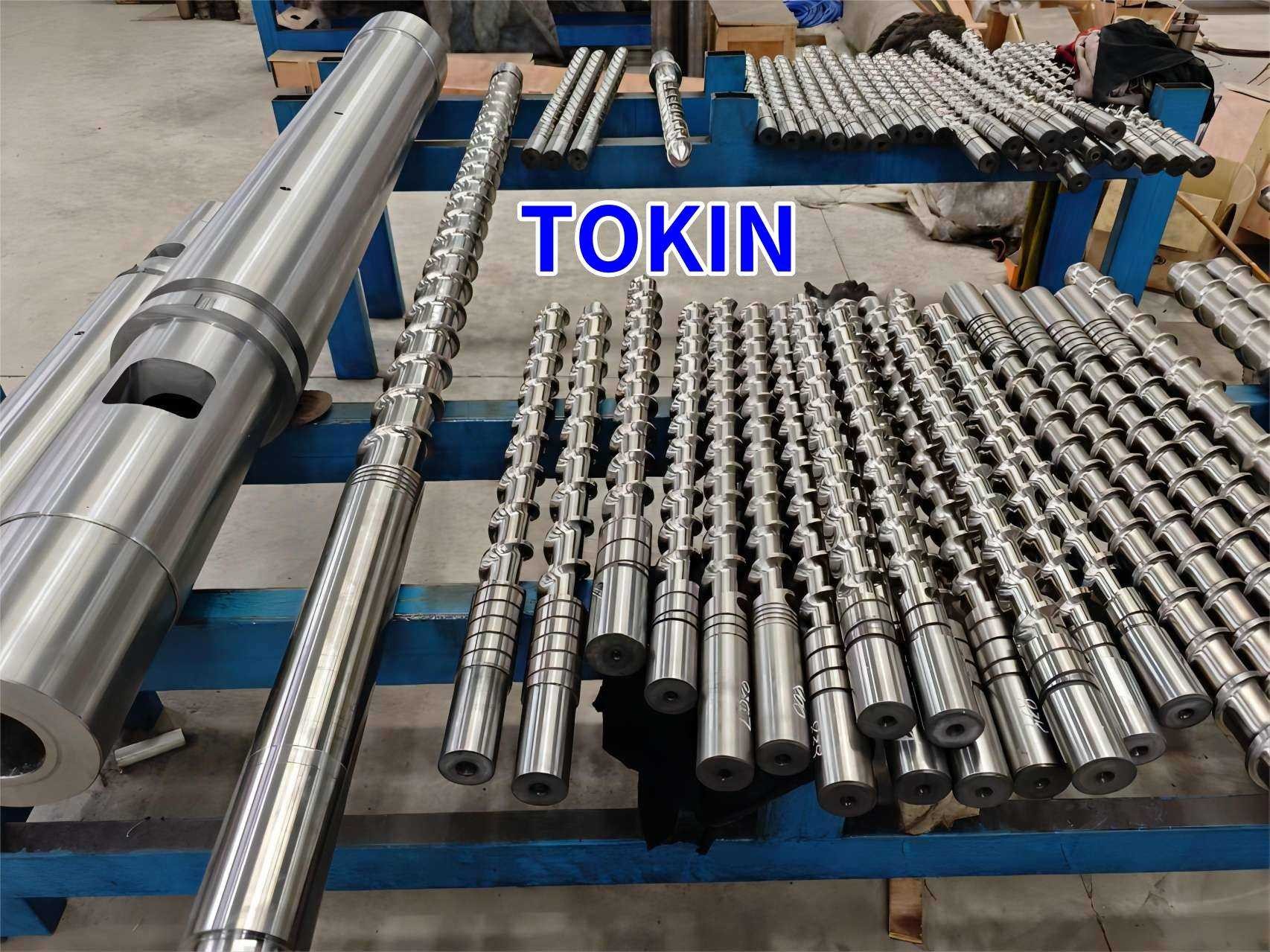

Customized Nissei FN5000 280 ton Injection Unit Injection Molding Screw and Barrel

Accessories: Screw head, Rings, Nozzle head set
Delivery time: 20-25 days
Base Materials: SACM645,SCM440,SKD61
Treatment: Nitrided & Bimetallic
Hardness: HRC65-HRC70
Suitable for: PP, PE, ABS, PET, PVC, PS ...

Product Description:

Tech Specification:


Screw Type

Specification

Plastics Application

characteristics

Bimetallic Screw

SACM645 Steel, top spray weld Tungsten carbide-based alloy

Transparent products, PA6, PA66 and other Engineering materials with fibers

Surface hardness is about HRC60°, Alloy layer thickness is 0.8-2.5mm, and it is wear-resistant

Chromed Screw

plated with Chromium, Titanium

PC/PMMA/PET transparent material,corrosive PVC

The coating is 0.03-0.06mm thick, the hardness is about HRC60°, and it is corrosion resistant

Stainless Steel Screw

Overall quenching hardening

High corrosion-resistanct

The overall hardness is about HRC 55°, and it is corrosion resistant

     SKD61 Screw

SKD61 material, special process treatment

General Purpose Plastics

Good toughness and strong torsion resistance

 Nitride Screw

SACM645 substrate, nitrided

PP, ABS, PS, AS, PVC and other common plastics

Nitriding layer depth is 0.5-0.8mm, and the hardness is HV980-1080

Materials & Treatments:

⁕Bimetallic Process :


Basis Materials: SACM645, SACM440, SKD61, SKD11

Hardness: 53-58 HRC

Coating Thickness: 1.5-2.0mm

Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%

Wear resistance: ★★★★★

Corrosion resistance: ★★★

⁕Chrome Plating Process:


Basis Materials: SACM645, SACM440, SKD61, SKD11

Chrome Thickness: 0.02-0.08mm

Hardness of Chrome: >700 HV

Finish Grade: Ra ≤0.4

Allication: PVC and other high corrosive plastics

Wear resistance: ★★

Corrosion resistance: ★★★★★


⁕Full Hardened Process:


Basis Materials: DC53, D2, M2, SKD61, SKD11 ...

Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni

Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)

Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%

Wear resistance: ★★★★★

Corrosion resistance: ★★★★★



FAQS:


Q: When will you arrange the production?
A: We usually arrange the production immediately after receiving your 30% TT.

Q: What is your factory delivery time ?
A: Standard delivery time is 20-25 days, if the screw's diameter is less than 50mm, the delivery time will be faster to 15-20 days, also we usually have 500 stock items ready to ship out.

Q: What is your accepted payment type?
A: T/T

Q: What logistic forwarder do you usually work with?
A: We work with UPS, TNT, FEDEX, SF and other logistric forwarders. Assigned your own forwarder for shipment is available.

Q: What is your warranty Time ?
A: Our warranty time is 12 months for all screw barrel and accessories products After delivery.


Customers Machinery List :


Haitian Injection Molding SystemsChenHsong Injection Molding SystemsHwamda Injection Molding Systems
Yizumi Injection Molding SystemsNissei Injection Molding SystemsTOYO Injection Molding Systems
Toshiba Injection Molding SystemsBorche Injection Molding Systems
Haida Injection Molding Systems
JSW Injection Molding Systems
Arburg Injection Molding SystemsEngel Injection Molding Systems
Krauss Maffei Injection Molding Systems
Battenfeld Extrusion SystemsTederic Injection Molding Systems
Cincinatti Milacron Injection Systems Kawaguchi Injection Molding SystemsJwell Extrusion Systems
Sumitomo Injection Molding SystemsTederic Injection Molding Systems
Fanuc Injection Molding Systems
Haixing  Injection Molding SystemFCS Injection Molding System
