  • Haitian Machine HTF120 MA120-D36mm Injection Moldng Screw Barrel
  • Haitian Machine HTF120 MA120-D36mm Injection Moldng Screw Barrel
  • Haitian Machine HTF120 MA120-D36mm Injection Moldng Screw Barrel
Haitian Machine HTF120 MA120-D36mm Injection Moldng Screw Barrel Haitian Machine HTF120 MA120-D36mm Injection Moldng Screw Barrel Haitian Machine HTF120 MA120-D36mm Injection Moldng Screw Barrel

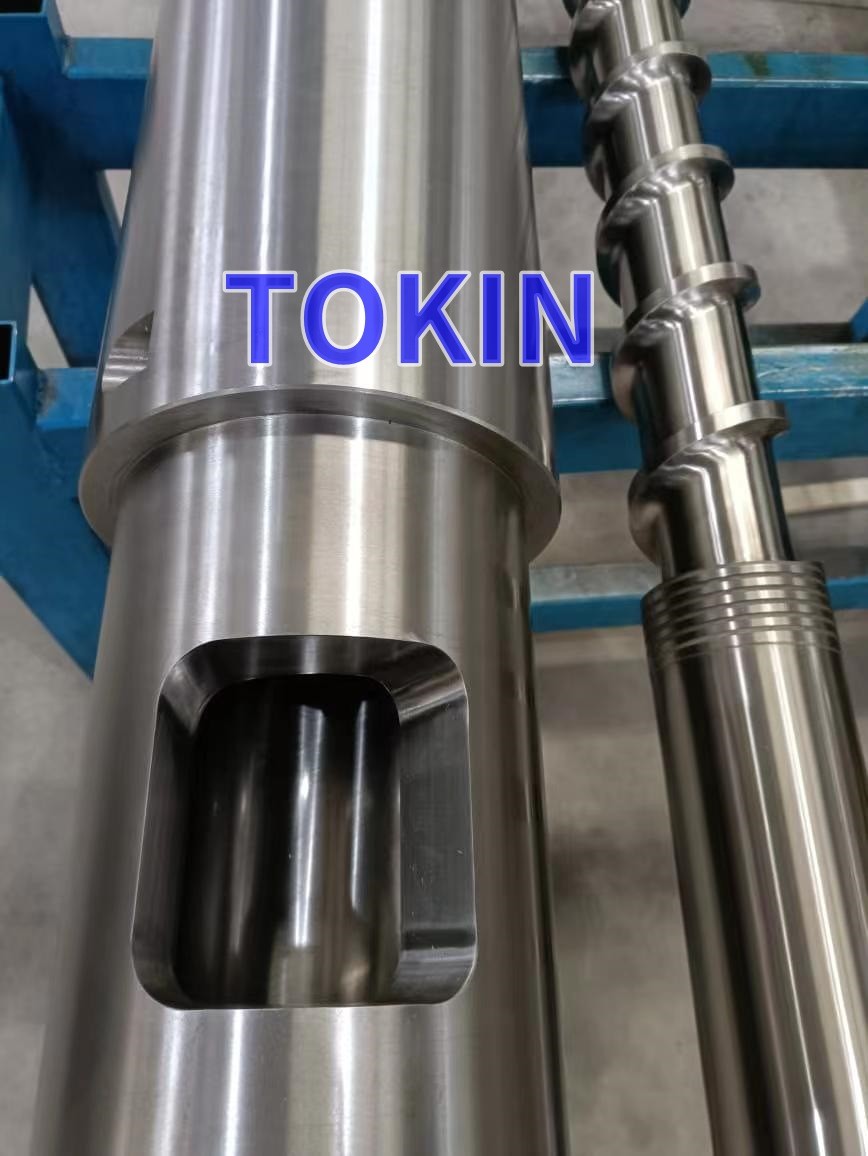

Haitian Machine HTF120 MA120-D36mm Injection Moldng Screw Barrel

Screw Size: D36x1100mm
Barrel Size: OD120x1074mm
Accessories: Screw head, Rings, Nozzle Head, Cooling Rings
Screw Barrel Set Total Weight: ~ 85 KG
Delivery time: 20 days
Base Materials: SACM645,SCM440,SKD61
Treatment: Nitrided & Bimetallic
Hardness: HRC65-HRC70
Suitable for: PP, PE, ABS, PET, PVC, PS ...

40$-1000$

Product Description:

R (2)_副本(1).jpg

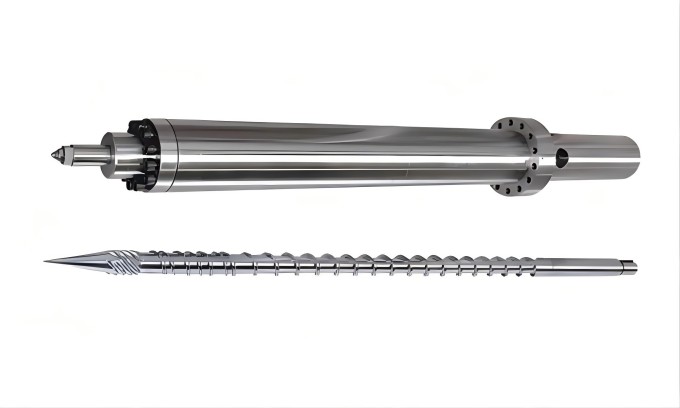

Haitian HTF/MA120T -Screw Diameter 36mm

Tech Introduction:

⁕Bimetallic Process :


Basis Materials: SACM645, SACM440, SKD61, SKD11

Hardness: 53-58 HRC

Coating Thickness: 1.5-2.0mm

Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%

Wear resistance: ★★★★★

Corrosion resistance: ★★★

⁕Chrome Plating Process:


Basis Materials: SACM645, SACM440, SKD61, SKD11

Chrome Thickness: 0.02-0.08mm

Hardness of Chrome: >700 HV

Finish Grade: Ra ≤0.4

Allication: PVC and other high corrosive plastics

Wear resistance: ★★

Corrosion resistance: ★★★★★


⁕Full Hardened Process:


Basis Materials: DC53, D2, M2, SKD61, SKD11 ...

Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni

Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)

Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%

Wear resistance: ★★★★★

Corrosion resistance: ★★★★★


FAQS:


Q: When will you arrange the production?
A: We usually arrange the production immediately after receiving your 30% TT.

Q: What is your factory delivery time ?
A: Standard delivery time is 20 days, if the screw's diameter is less than 50mm, the delivery time will be faster to 15 days, also we have 2000 stock items ready to ship out.

Q: What is your accepted payment type?
A: T/T ,Western Union and Alipay

Q: What logistic forwarder do you usually work with?
A: We work with EMS, TNT, UPS, FEDEX and other logistric forwarders. Assigned your own forwarder for shipment is available.

Q: What is your warranty Time ?
A: Our warranty time is 12 months for all screw barrel and accessories products After delivery.












We manufacturing and offering screw barrels for :


Haitian Injection Molding SystemsChenHsong Injection Molding SystemsHwamda Injection Molding Systems
Yizumi Injection Molding SystemsNissei Injection Molding SystemsTOYO Injection Molding Systems
Toshiba Injection Molding SystemsBorche Injection Molding Systems
Haida Injection Molding Systems
JSW Injection Molding Systems
Arburg Injection Molding SystemsEngel Injection Molding Systems
Krauss Maffei Injection Molding Systems
Battenfeld Extrusion SystemsTederic Injection Molding Systems
Cincinatti Milacron Injection Systems Kawaguchi Injection Molding SystemsJwell Extrusion Systems
Sumitomo Injection Molding SystemsTederic Injection Molding Systems
Fanuc Injection Molding Systems
Haixing  Injection Molding SystemFCS Injection Molding System


Fast Shipment:

1. The delivery time of Injection Molding screw barrel is usually 20-25 days after drawings are confirmed.

2. Faster air shipment can by TNT, SF, FedEx, DHL, UPS, EMS and etc.

3. Standard Packages are high quality wooden cases
