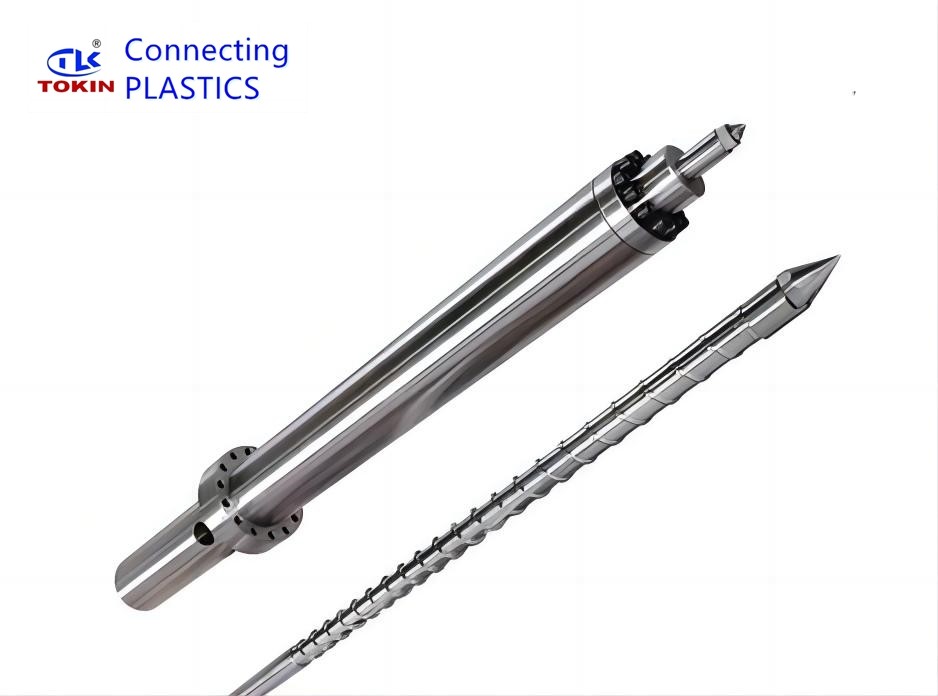

High Speed Screw Barrel 65mm For Welltec Injection Molding Machine 400Se5h Injection Unit

Screw diameter: 65mm 75mm
Screw L/D ratio:23.9  20.7
Accessories: Screw head, Rings, Nozzle Tip Set
Base Materials: SACM645,SCM440,SKD61 Steel
Process: Nitrided & Bimetallic & Chrome
Hardness: HRC55-65

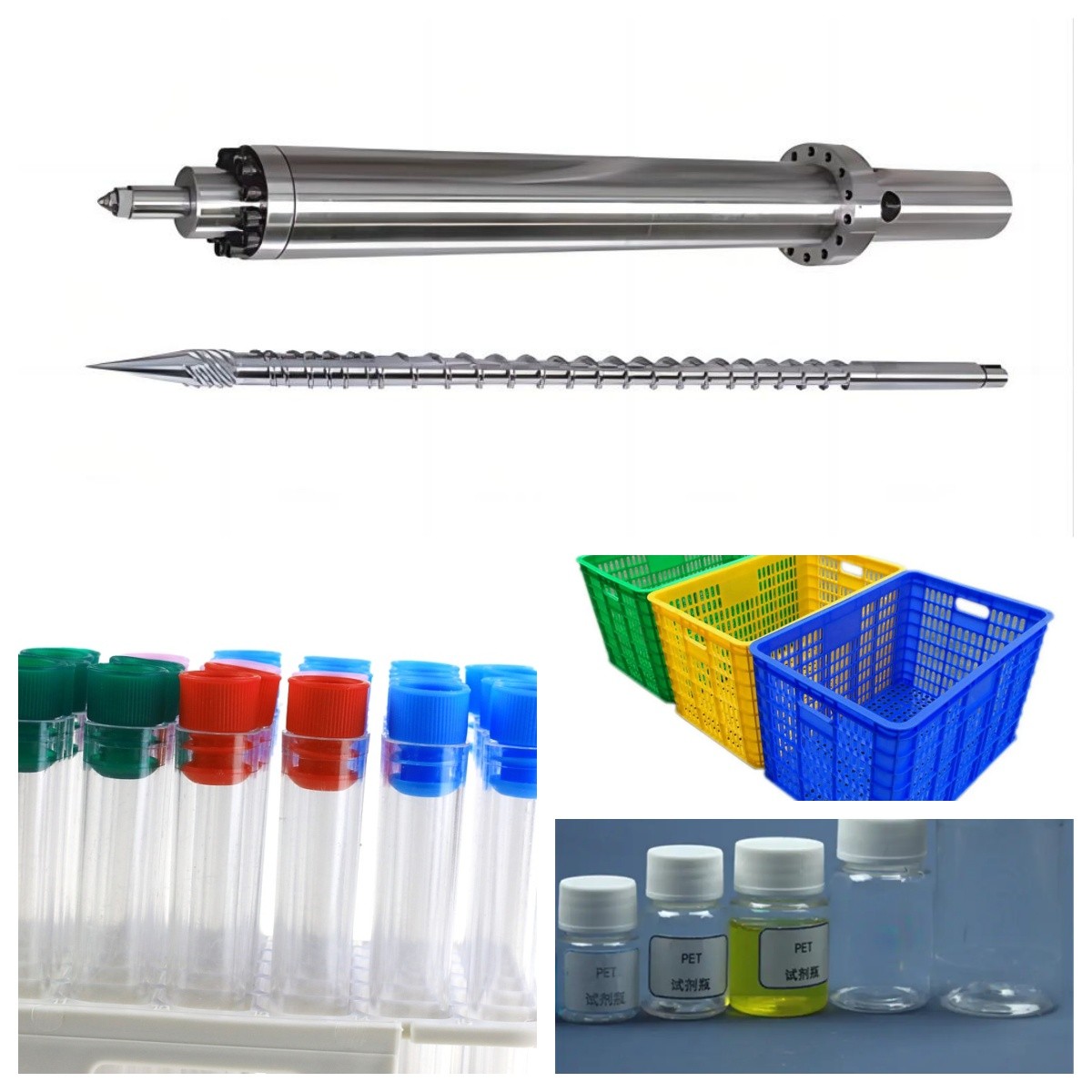

Suitable for: PP, PE, ABS, PET, PVC, PS ...
Delivery time: 20-25 days

Product Description:

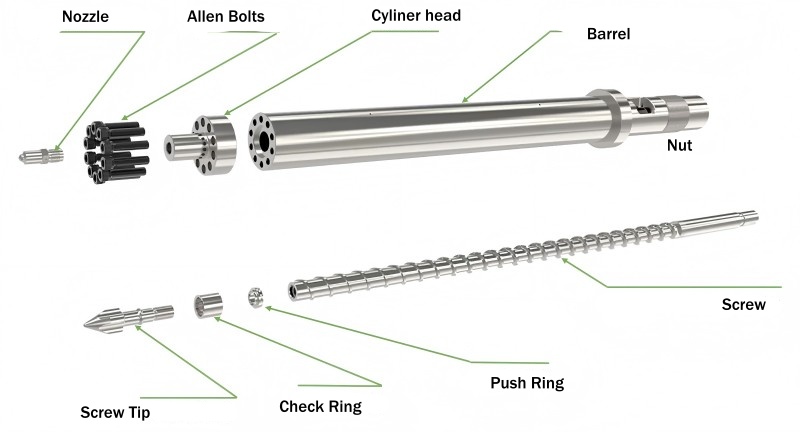

The Standard Injection Molding Parts We Make：

INJECTION UNIT.jpg

Tech Introduction：

⁕Bimetallic Process ：

Basis Materials: SACM645, SACM440, SKD61, SKD11

Hardness: 53-58 HRC

Coating Thickness: 1.5-2.0mm

Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%

Wear resistance: ★★★★★

Corrosion resistance: ★★★

⁕Chrome Plating Process:

Basis Materials: SACM645, SACM440, SKD61, SKD11

Chrome Thickness: 0.02-0.08mm

Hardness of Chrome: >700 HV

Finish Grade: Ra ≤0.4

Allication: PVC and other high corrosive plastics

Wear resistance: ★★

Corrosion resistance: ★★★★★

⁕Full Hardened Process：

Basis Materials: DC53, D2, M2, SKD61, SKD11 ...

Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni

Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)

Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%

Wear resistance: ★★★★★

Corrosion resistance: ★★★★★

FAQS：

Q: When will you arrange the production?
A: We can arrange the production after order & drawings confirmation

Q: What is your factory delivery time ?
A: Standard delivery time is 20-25 days, if the screw's diameter is less than 50mm, the delivery time will be faster to 15-20 days.

Q: What is your accepted payment type?
A: T/T

Q: What logistic forwarder do you usually work with?
A: We work with UPS, TNT, FEDEX, SF and other logistric forwarders. Assigned your own forwarder for shipment is available.

Q: What is your warranty Time ?
A: 12 months when shipment on board
