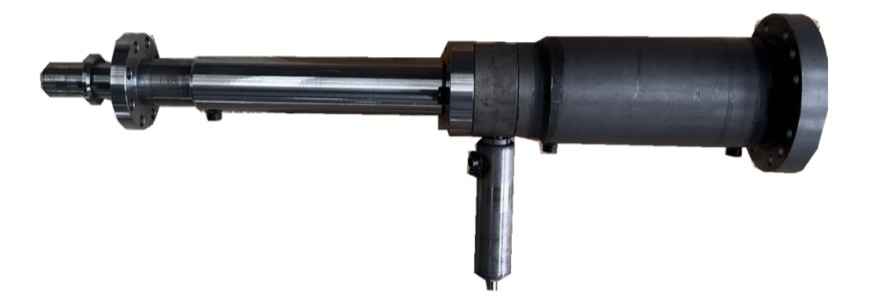

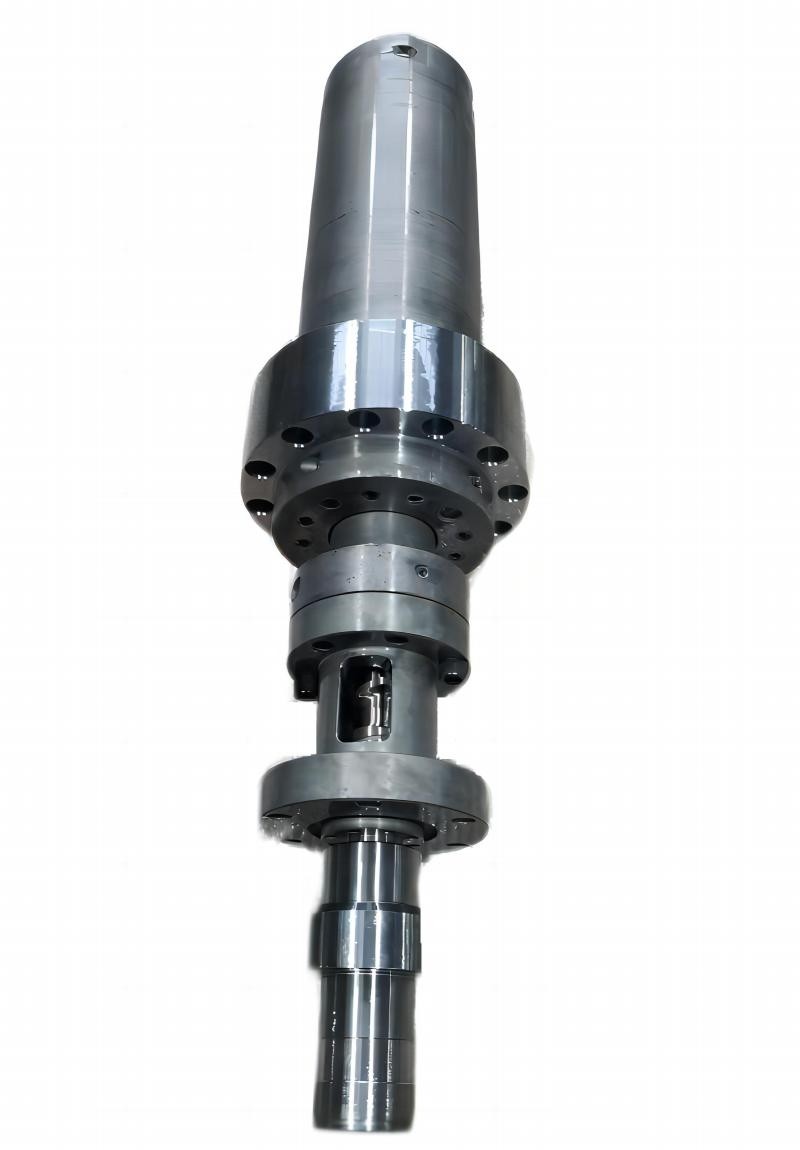

KS Rubber Machine Kesheng KSLS 850 series Screw Barrels for Rubber Injection Molding with Less leakage Design

Standard Material: 38CrMoAlA (SACM645, Nitrided Type)

Substrate Pre-treatment: Quenching & High-temperature Tempering (Quenched and Tempered)

• Substrate Hardness: HB 260～290 (equivalent to HRC 25～29)

• Purpose: Ensure matrix toughness to avoid cracking or torsion fracture after nitriding.

Final Surface Treatment: Gas Nitriding

• Heat Treatment Process: Gas nitriding at 520~560°C

• Nitrided Case Depth: 0.5～0.8 mm

• Surface Hardness: HV 950～HV1020

• Brittleness Grade: ≤ Grade 2 (Grade 1 for premium requirement)

• Application: General rubbers including EPDM, NR, NBR, CR; non-highly-filled formulations without strong corrosive media.

Optional Upgrade: Nitriding + Hard Chrome Plating

• Chrome Coating Thickness: 0.05～0.10 mm

• Surface Hardness after Chrome Plating: HV 900～950

• Advantages: Anti-adhesion, corrosion resistance, easy cleaning; suitable for silicone rubber and frequent color change production.

FAQS：

Q: When will you arrange the production?
A: We can arrange production soon after order & drawings confirmation

Q: What is your delivery time ?
A: Standard delivery time is 20-25 days, if the screw's diameter is less than 50mm, the delivery time can be 15-20 days

Q: What is your accepted payment type?
A: T/T

Q: What logistic forwarder do you usually work with?
A: EMS, TNT, UPS, FEDEX and other high-efficient logistric forwarders

Q: What is your warranty Time ?
A: 12 months when shipment on board
