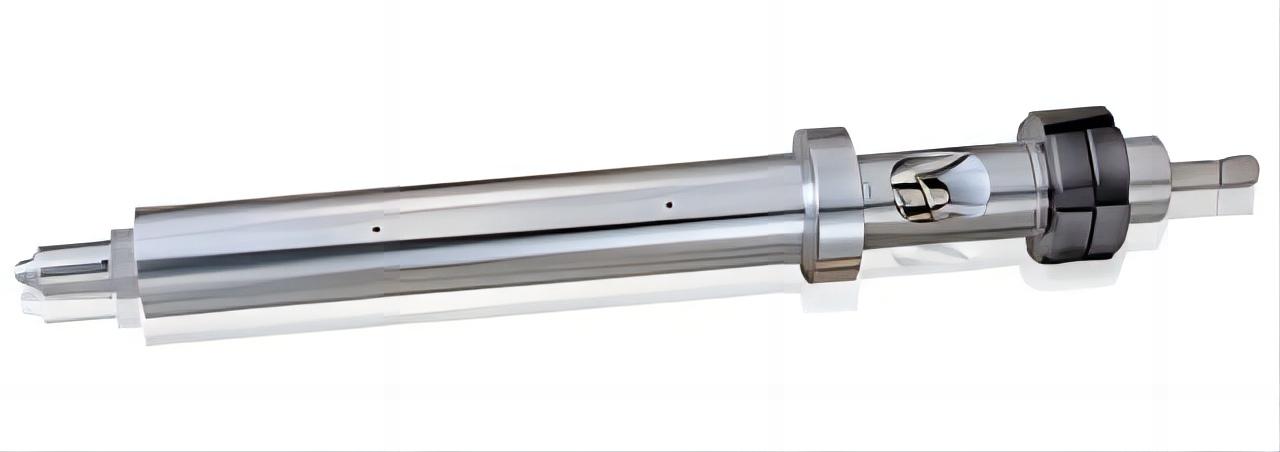

Screw Size: 63mm,71mm, 80mm Accessories: Screw head, Rings, Nozzle Tip Set Base Materials: SACM645,SCM440,SKD61 Process: Nitrided & Bimetallic Hardness: HRC65-HRC70 Suitable for: PP, PE, ABS, PET, PVC, PS ... Delivery time: 20 days
Customized Nissei Models :
NC8000/NC8000FG/NC8300/NC8300F/NC9000/NC9000G/NEX110/NEX15/NEX30/NEX180/NEX460/NEX50/NEX140/NEX220/NEX360/FNX80/FNX110/FNX140/FNX280/FNX220/FNX180/FNX360/NEX460III-140LE/ NEX460III-210LE/PNX40-2A/ PNX40-5A/PNX60-5A/PNX40III-2A/PNX40III-5A/ PNX60III-5A/FN80-12A, FN80-18A/FN110-18A/FN110-25A/FN140-25A, FN140-36A/FN180-36A/FN180-50A/ FN220-50A/FN220-71A/FN280-71A/FN280-100A/FN360-100A/ FN360-140A/FN460-160A/FN460-210L/FV-560-210L/FV560-310L/FV660-310L/ FV660-400L/FV860-400L/FV860-600L/ FV1100-600L/FV1300-700L.
Nissei Injection Molding Screw diameters: 14mm, 16mm, 19mm, 22mm, 26mm, 28mm, 32mm, 36mm, 38mm, 40mm, 45mm, 50mm, 56mm, 63mm, 64mm, 71mm, 75mm, 80mm, 90mm, 100mm, 112mm, 120mm, 125mm, 135mm, 150mm
Tech Introduction:
⁕Bimetallic Process :
Basis Materials: SACM645, SACM440, SKD61, SKD11
Hardness: 53-58 HRC
Coating Thickness: 1.5-2.0mm
Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%
Wear resistance: ★★★★★
Corrosion resistance: ★★★
Basis Materials: SACM645, SACM440, SKD61, SKD11
Chrome Thickness: 0.02-0.08mm
Hardness of Chrome: >700 HV
Finish Grade: Ra ≤0.4
Allication: PVC and other high corrosive plastics
Wear resistance: ★★
Corrosion resistance: ★★★★★
⁕Full Hardened Process:
Basis Materials: DC53, D2, M2, SKD61, SKD11 ...
Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni
Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)
Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%
Wear resistance: ★★★★★
Corrosion resistance: ★★★★★
We manufacturing and offering screw barrels for :
Haitian Injection Molding Systems | ChenHsong Injection Molding Systems | Hwamda Injection Molding Systems |
Yizumi Injection Molding Systems | Nissei Injection Molding Systems | TOYO Injection Molding Systems |
Toshiba Injection Molding Systems | Borche Injection Molding Systems | Haida Injection Molding Systems |
JSW Injection Molding Systems | Arburg Injection Molding Systems | Engel Injection Molding Systems |
Krauss Maffei Injection Molding Systems | Battenfeld Extrusion Systems | Tederic Injection Molding Systems |
Cincinatti Milacron Injection Systems | Kawaguchi Injection Molding Systems | Jwell Extrusion Systems |
Sumitomo Injection Molding Systems | Tederic Injection Molding Systems | Fanuc Injection Molding Systems |
Haixing Injection Molding System | FCS Injection Molding System |
Fast Shipment:
1. The delivery time of Injection Molding screw barrel is usually 20-25 days after drawings are confirmed.
2. Faster air shipment can by TNT, SF, FedEx, DHL, UPS, EMS and etc.
3. Standard Packages are high quality wooden cases
Haitian MA2500-D50 screw barrel sets
D75mm PVC injection molding screw barrel
Nitrided screws for rubber injection molding mac
