Standard 80 156 Conical Twin Extruders Twin Screw Barrel Set With 12 Months Guarantee

Standard 80 156 Conical Twin Extruders Twin Screw Barrel Set With 12 Months Guarantee

Size: 55/110, 60/125, 65/132, 70/140, 75/150, 80/156, 92/188
(CINCINNATI, BATTENFELD, KRUSS MAFFEI,BAUSANO)
Applcation: PP,PE,ABS,PVC,Pelleting,Pipe,Profile,Sheet,WPC,PVC,Soft PVC etc
Delivery Time: 15 days
Base Materials: SACM645,SCM440
Hardness: HRC58-70
Warranty : 12 Months After Delivery On Board

Product Description:

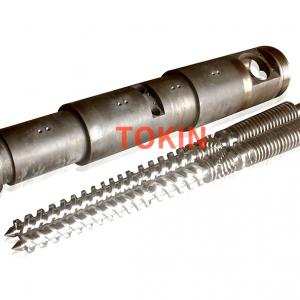

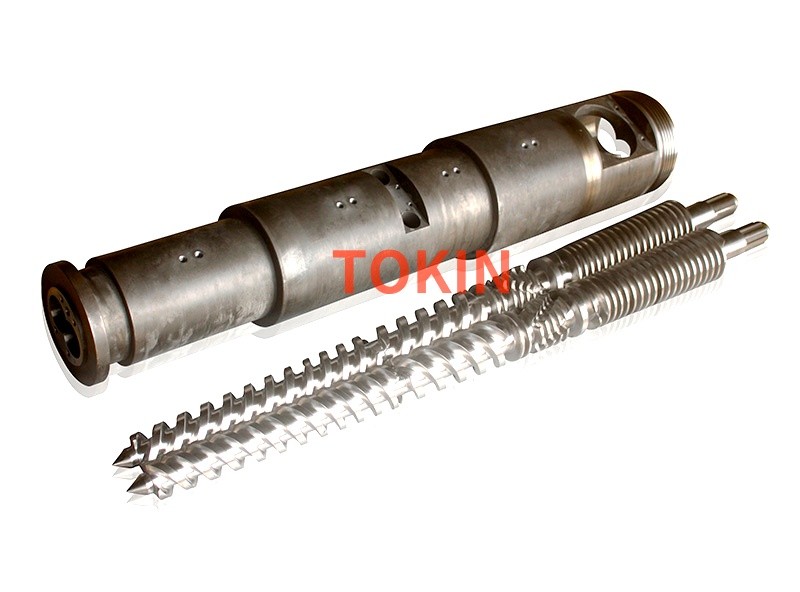

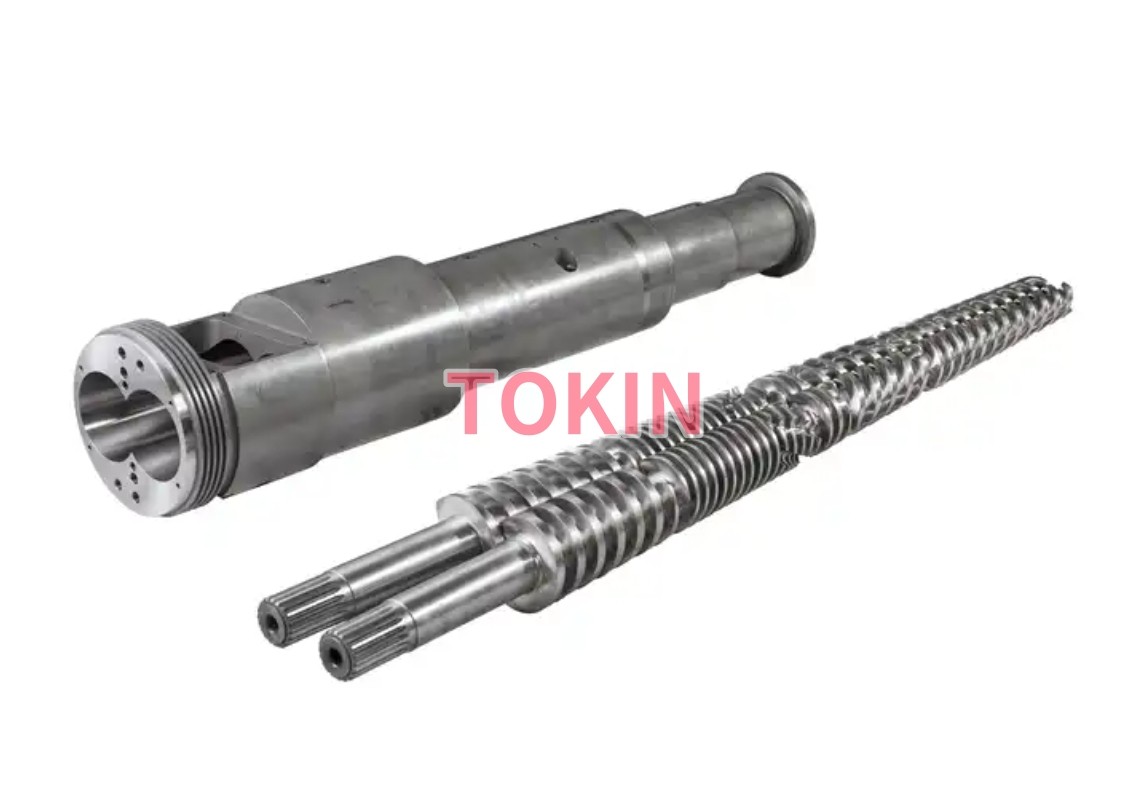

TOKIN CONICAL TWIN SCREW & BARREL

Optimized for PVC Processing

✓ Excellent Plasticizing Performance
✓ Superior Wear Resistance
✓ Stable Output & Low Energy Consumption
✓ Compatible with Most Major Extrusion Machines
✓ Fast Delivery Within 20 Days

WHAT WE CAN DO :

✔ Nitrided, Bimetallic & Hardened Options

✔ Wear Resistant & Corrosion Resistant

✔ OEM / ODM Manufacturing

✔ Compatible with KraussMaffei, Cincinnati, Battenfeld, Windsor, Jwell and Most Chinese Machines

✔ 20 Days Fast Delivery

✔ More Than 20 Years Manufacturing Experience

Plastic Material	Recommended Screw	Recommended Barrel
Soft PVC	Nitrided Screw	Nitrided Barrel
Rigid PVC	Nitrided Screw	Nitrided Barrel
PVC + 20-30% CaCO₃	Bimetallic Screw	Fe-based Bimetallic Barrel
PVC + 40-60% CaCO₃	Nickel Alloy Screw	Nickel-based Bimetallic Barrel
PVC Recycling	Nickel Alloy Screw	Nickel-based Bimetallic Barrel
CPVC	Nickel Alloy Screw	Nickel-based Bimetallic Barrel
WPC	Tungsten Carbide Screw	Bimetallic Barrel
PVC Foam Board	Nitrided / Bimetallic Screw	Bimetallic Barrel

Configuration	Relative Service Life
Standard Nitrided Screw + Barrel	1×
Nitrided Screw + Bimetallic Barrel	2–3×
Nickel Alloy Screw + Bimetallic Barrel	3–5×
Tungsten Carbide Screw + Bimetallic Barrel	4–6×
Premium HIP Alloy System	5–8×

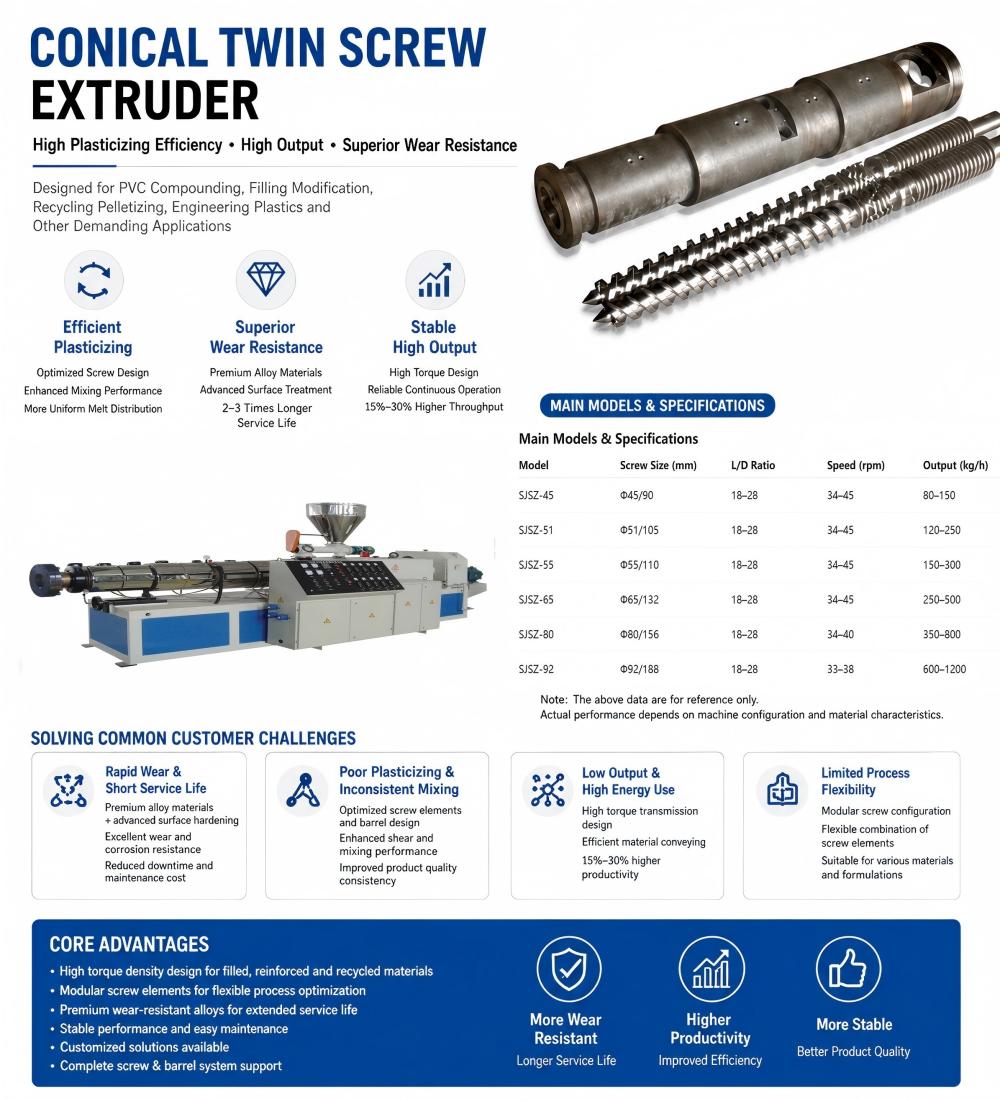

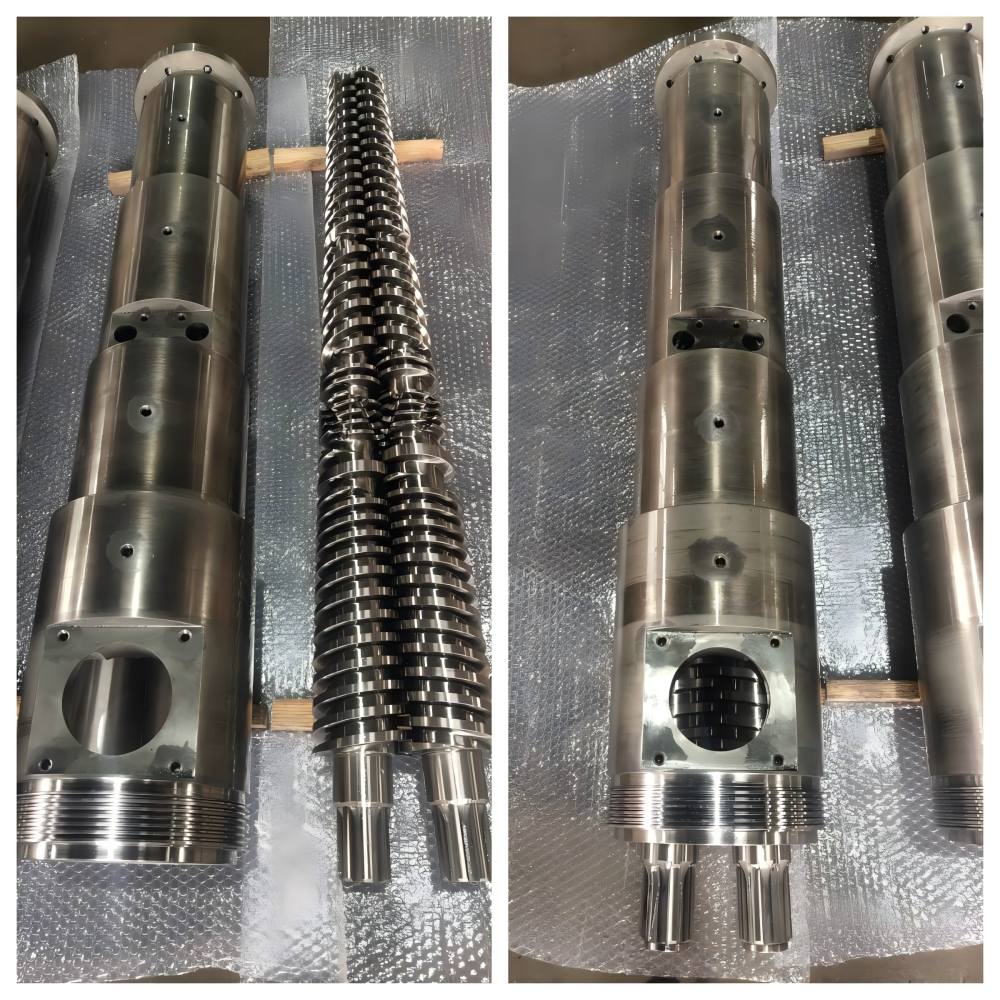

Conical twin screw barrels_副本(1).jpg

Main Models & Specifications

Model	Screw Size (mm)	L/D Ratio	Speed (rpm)	Output (kg/h)
SJSZ-45	Φ45/90	18–28	34–45	80–150
SJSZ-51	Φ51/105	18–28	34–45	120–250
SJSZ-55	Φ55/110	18–28	34–45	150–300
SJSZ-65	Φ65/132	18–28	34–45	250–500
SJSZ-80	Φ80/156	18–28	34–40	350–800
SJSZ-92	Φ92/188	18–28	33–38	600–1200
