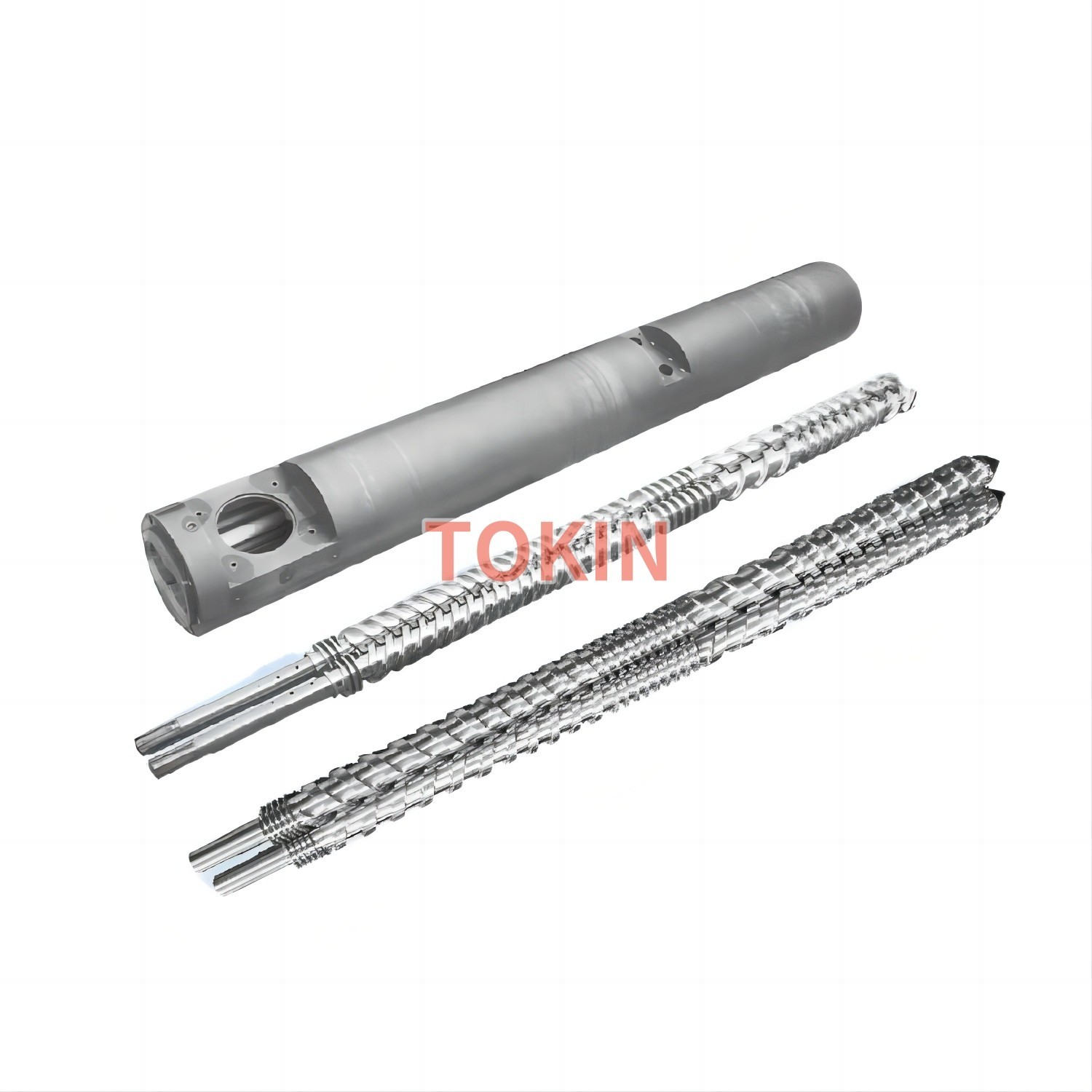

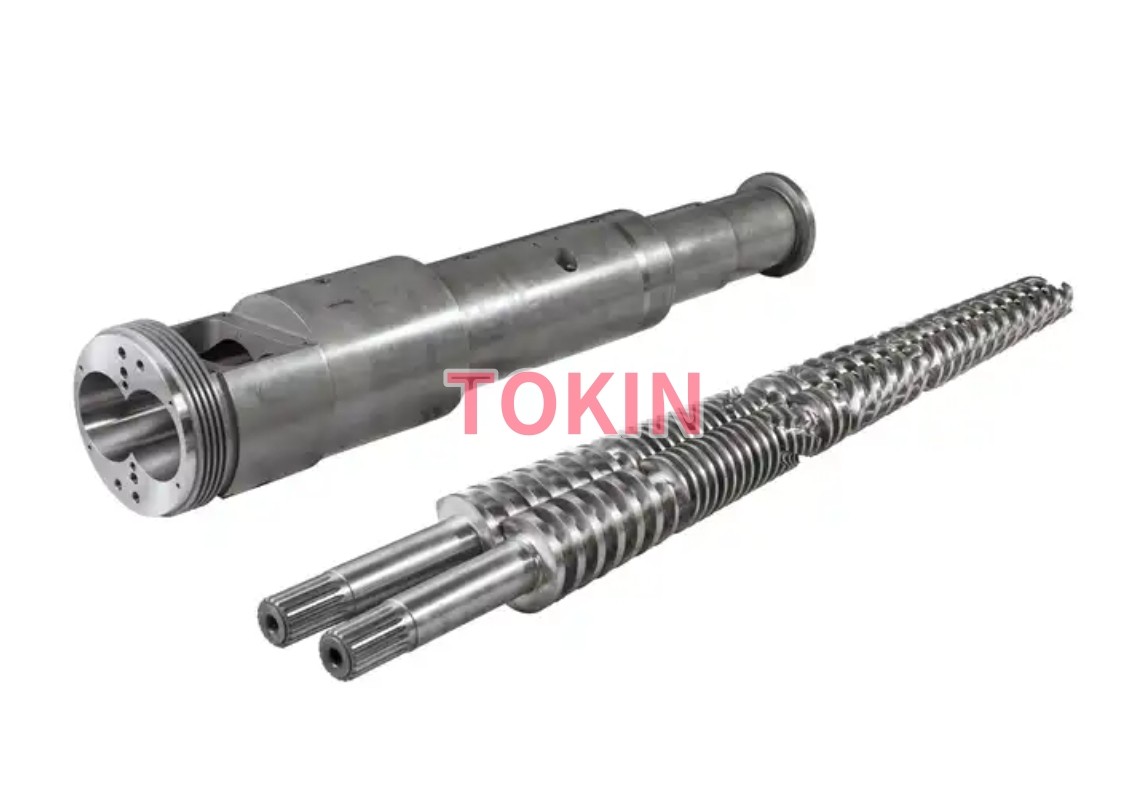

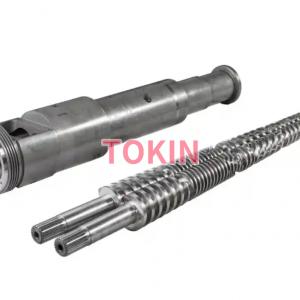

132 Parallel Twin Screw Barrel for PVC Pipe Machine and Sheet Machine Twin Screw Extruder

132 Parallel Twin Screw Barrel for PVC Pipe Machine and Sheet Machine Twin Screw Extruder

Applicated machine:CINCINNATI, BATTENFELD, KRUSS MAFFEI,BAUSANO
Applied Plastics & Products: PP,PE,ABS,PVC,Pelleting,Pipe,Profile,Sheet,WPC,PVC,Soft PVC etc
Delivery Time: 7-15 days
Base Materials: SACM645,SCM440
Treatment: Nitrided/Bimetallic/Chrome-Plating
Hardness: HRC65-HRC70
Warranty : 12 Months

Product Description:

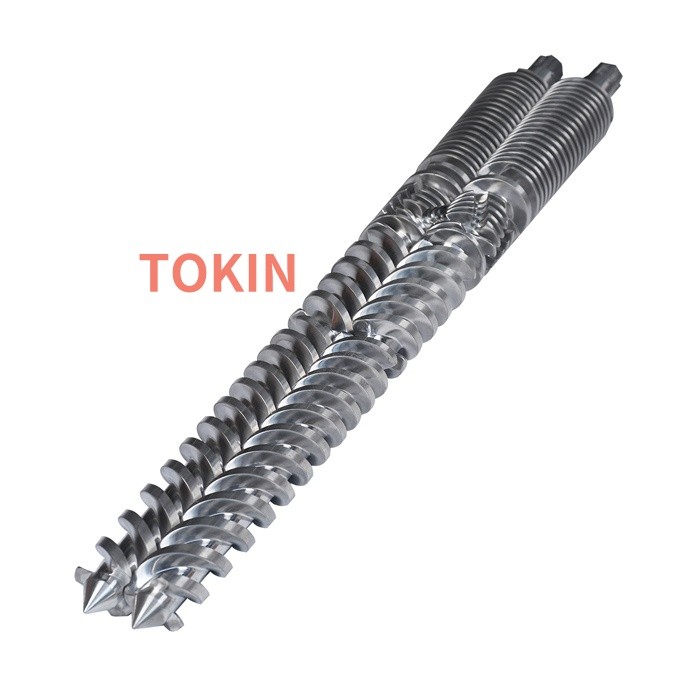

TOKIN CONICAL TWIN SCREW & BARREL

Optimized for PVC Processing

✓ Excellent Plasticizing Performance
✓ Superior Wear Resistance
✓ Stable Output & Low Energy Consumption
✓ Compatible with Most Major Extrusion Machines
✓ Fast Delivery Within 20 Days

WHAT WE CAN DO :

✔ Nitrided, Bimetallic & Hardened Options

✔ Wear Resistant & Corrosion Resistant

✔ OEM / ODM Manufacturing

✔ Compatible with KraussMaffei, Cincinnati, Battenfeld, Windsor, Jwell and Most Chinese Machines

✔ 20 Days Fast Delivery

✔ More Than 20 Years Manufacturing Experience

Model	Screw Diameter (mm)	L/D Ratio	Speed (rpm)	Torque (N·m)	Output (kg/h)	Typical Materials
PTS-20	Φ20	20–36	300–800	150–300	5–20	PVC, PE, PP, Recycled Materials
PTS-30	Φ30	20–36	200–600	300–600	20–60	PVC, PE, PP, ABS
PTS-45	Φ45	20–36	150–500	800–1500	80–150	PVC, PE, PP, WPC
PTS-55	Φ55	20–36	150–450	1200–2000	150–300	PVC, PE, PP, Compounds
PTS-65	Φ65	20–36	100–400	1800–2500	250–500	Filled PVC, PP, PE
PTS-75	Φ75	20–36	100–350	2500–4000	350–800	High-Filler PVC, WPC
PTS-95	Φ95	18–32	80–300	4000–6000	400–1200	PVC, PE, PP, Recycled Compounds

Plastic Material	Recommended Screw	Recommended Barrel
Soft PVC	Nitrided Screw	Nitrided Barrel
Rigid PVC	Nitrided Screw	Nitrided Barrel
PVC + 20-30% CaCO₃	Bimetallic Screw	Fe-based Bimetallic Barrel
PVC + 40-60% CaCO₃	Nickel Alloy Screw	Nickel-based Bimetallic Barrel
PVC Recycling	Nickel Alloy Screw	Nickel-based Bimetallic Barrel
CPVC	Nickel Alloy Screw	Nickel-based Bimetallic Barrel
WPC	Tungsten Carbide Screw	Bimetallic Barrel
PVC Foam Board	Nitrided / Bimetallic Screw	Bimetallic Barrel

Configuration	Relative Service Life
Standard Nitrided Screw + Barrel	1×
Nitrided Screw + Bimetallic Barrel	2–3×
Nickel Alloy Screw + Bimetallic Barrel	3–5×
Tungsten Carbide Screw + Bimetallic Barrel	4–6×
Premium HIP Alloy System	5–8×
