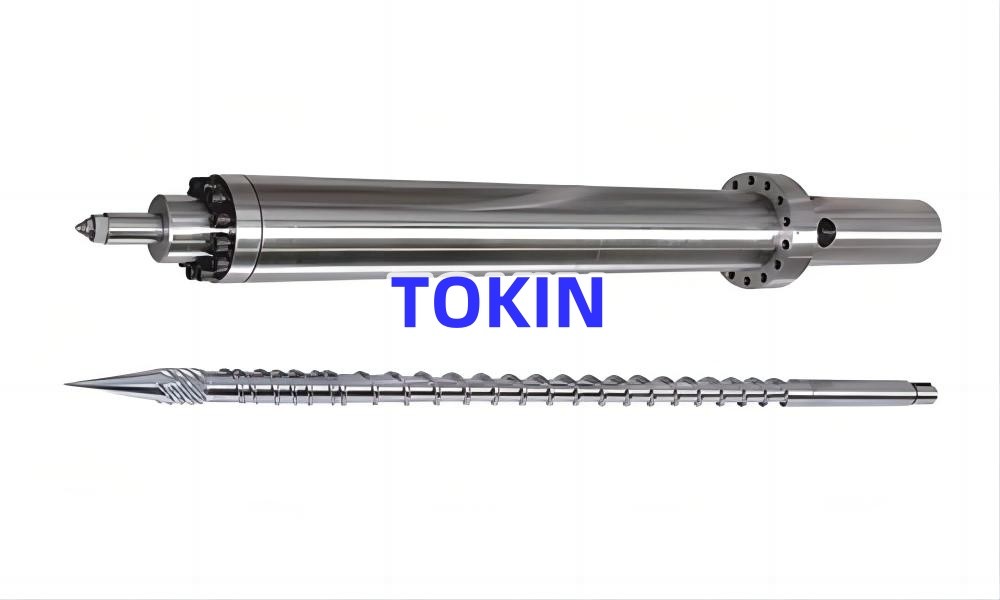

BORCHE Plastics Injection Molding Machine Bi Series Bi130 Screw Barrel 35mm 40mm 45mm

Screw diameter: 35mm 40mm 45mm
Screw L/D ratio: 23.5 20.5 18
Accessories: Screw head, Rings, Nozzle Tip Set
Base Materials: SACM645,SCM440,SKD61 Steel
Process: Nitrided & Bimetallic & Chrome
Hardness: HRC55-65
Suitable for: PP, PE, ABS, PET, PVC, PS ...
Delivery time: 20-25 days

Product Description:


Tech Introduction:

⁕Bimetallic Process :

Basis Materials: SACM645, SACM440, SKD61, SKD11

Hardness: 53-58 HRC

Coating Thickness: 1.5-2.0mm

Allication: Plastic Recycling ≤2 Times, Plastics With Glass Fiber≤35%

Wear resistance: ★★★

Corrosion resistance: ★★

⁕Chrome Plating Process:

Basis Materials: SACM645, SACM440, SKD61, SKD11

Chrome Thickness: 0.02-0.08mm

Hardness of Chrome: >700 HV

Finish Grade: Ra ≤0.4

Allication: PVC and other high corrosive plastics

Wear resistance:

Corrosion resistance: ★★★★

⁕Full Hardened Process:

Basis Materials: DC53, D2, M2, SKD61, SKD11 ...

Chemical Composition: C, Si, Cr, Mn, Mo, V, Ni

Hardness: SKD61(HRC56-58), DC53( 62-63 HRC)

Application: PP PA LCP, POM, PPA, PBT, PC, PPS, PEI, PEEK with Glass Fiber ≤50%

Wear resistance: ★★★★

Corrosion resistance: ★★★★





We manufacturing and offering screw barrels for :

Haitian Injection Molding SystemsChenHsong Injection Molding SystemsHwamda Injection Molding Systems
Yizumi Injection Molding SystemsNissei Injection Molding SystemsTOYO Injection Molding Systems
Toshiba Injection Molding SystemsBorche Injection Molding Systems
Haida Injection Molding Systems
JSW Injection Molding Systems
Arburg Injection Molding SystemsEngel Injection Molding Systems
Krauss Maffei Injection Molding Systems
Battenfeld Extrusion SystemsTederic Injection Molding Systems
Cincinatti Milacron Injection Systems Kawaguchi Injection Molding SystemsJwell Extrusion Systems
Sumitomo Injection Molding SystemsTederic Injection Molding Systems
Fanuc Injection Molding Systems
Haixing  Injection Molding System


1. The delivery time of our screw barrel is usually 20-25 days after drawings are confirmed.

2. Faster air shipment by TNT, SF, FedEx, DHL, UPS, EMS and etc.
