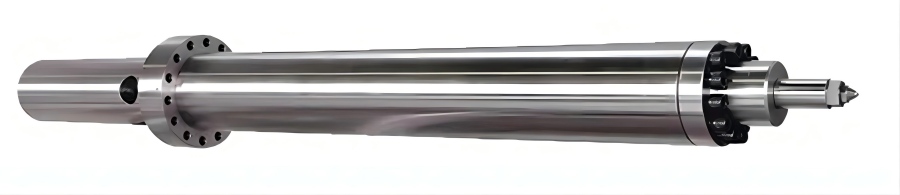

ABS Material Injection Molding

Base Materials: SACM645,SCM440
Treatment: Nitrided/Bimetallic/Chrome-Plating
Hardness: HRC65-HRC70

Product Description:

ABS Material Type	Screw Material	Barrel Material	Heat Treatment / Surface	Estimated Service Life
Standard ABS	38CrMoAlA	38CrMoAlA	Gas nitriding	Screw: 2.5–5 years Barrel: 3–5 years
High-gloss ABS	SACM645 nitrided screw	Nitrided barrel	Deep nitriding + polishing	Screw: 3–5 years
Flame-retardant ABS	Corrosion-resistant bimetallic screw	Bimetallic barrel	Nickel-based alloy coating	Screw: 3–5 years Barrel: 3–6 years
ABS + Glass Fiber	Bimetallic screw	Bimetallic barrel	Tungsten carbide coating	Screw: 3–5 years
Recycled ABS	Wear/corrosion-resistant bimetallic screw	Bimetallic barrel	Nickel alloy hardfacing	Screw: 3–5 years
Transparent ABS / specialty ABS	Polished alloy screw	High-polish nitrided barrel	Hard chrome / mirror polishing	Screw: 3.5+ years
