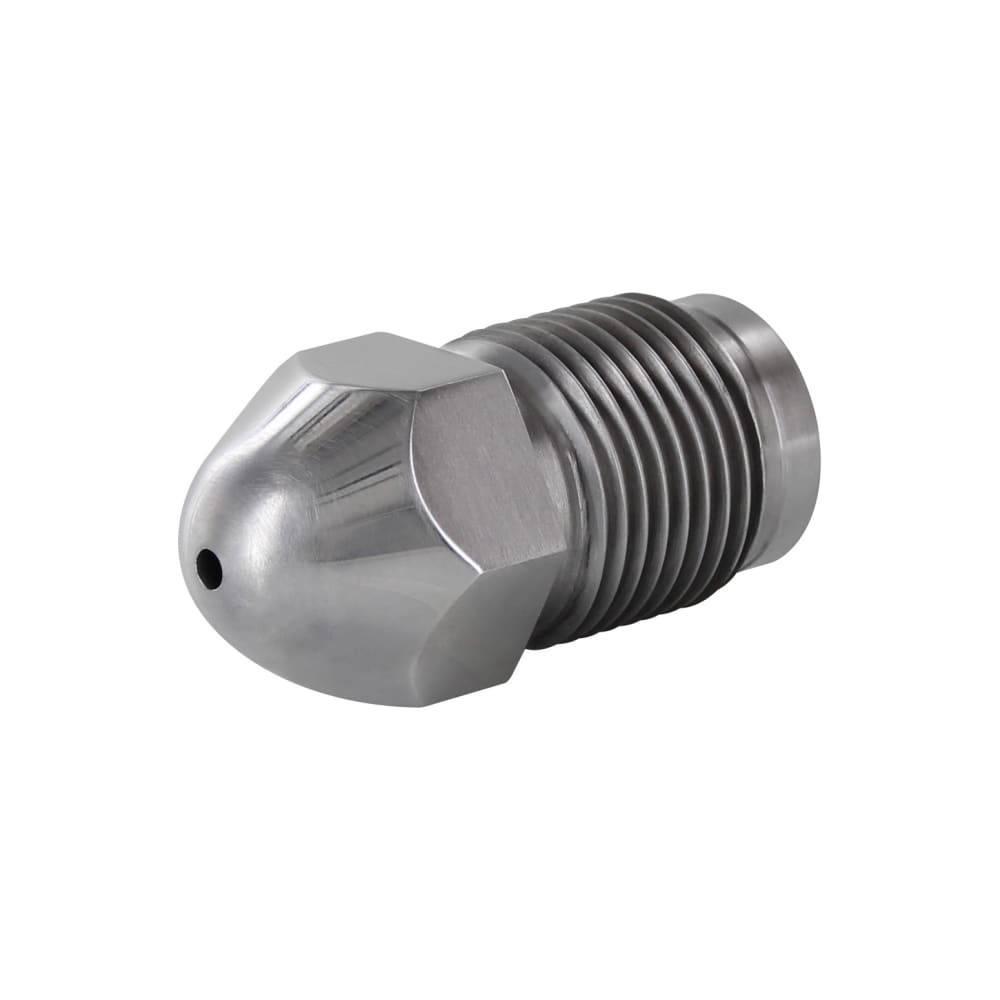

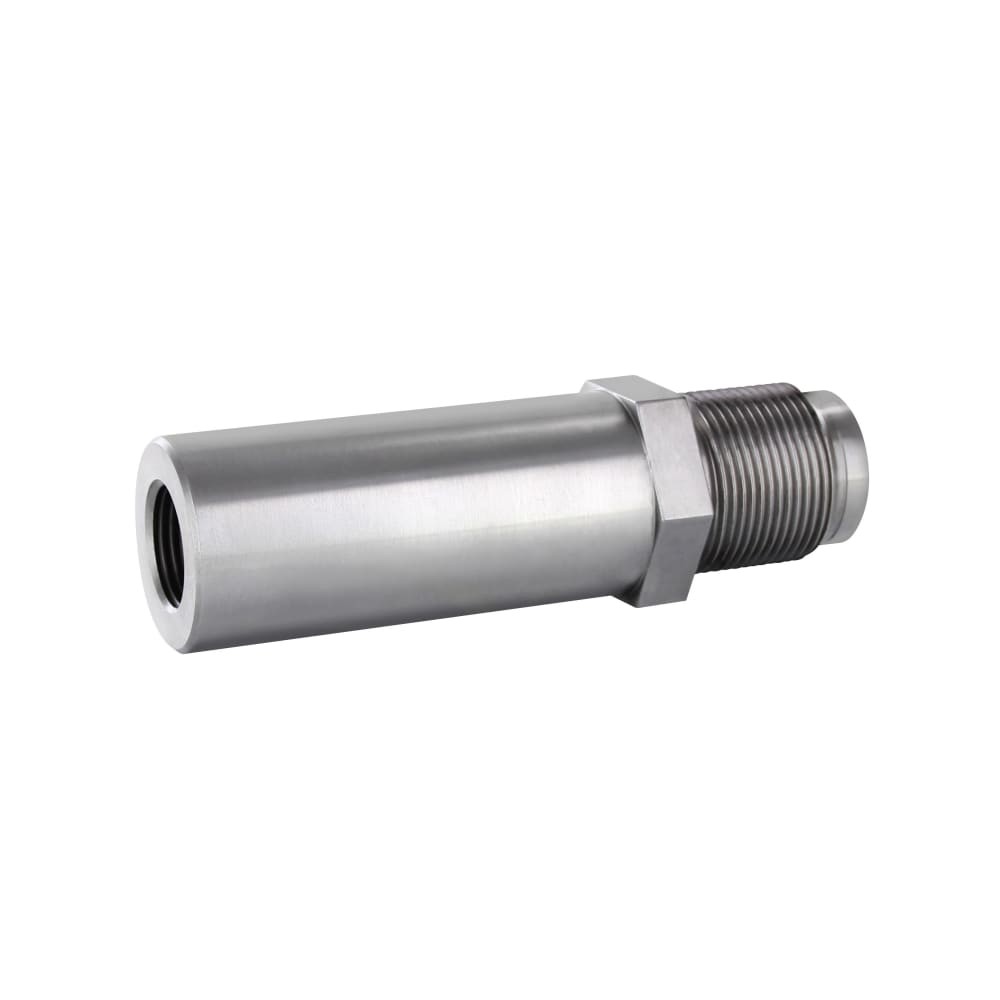

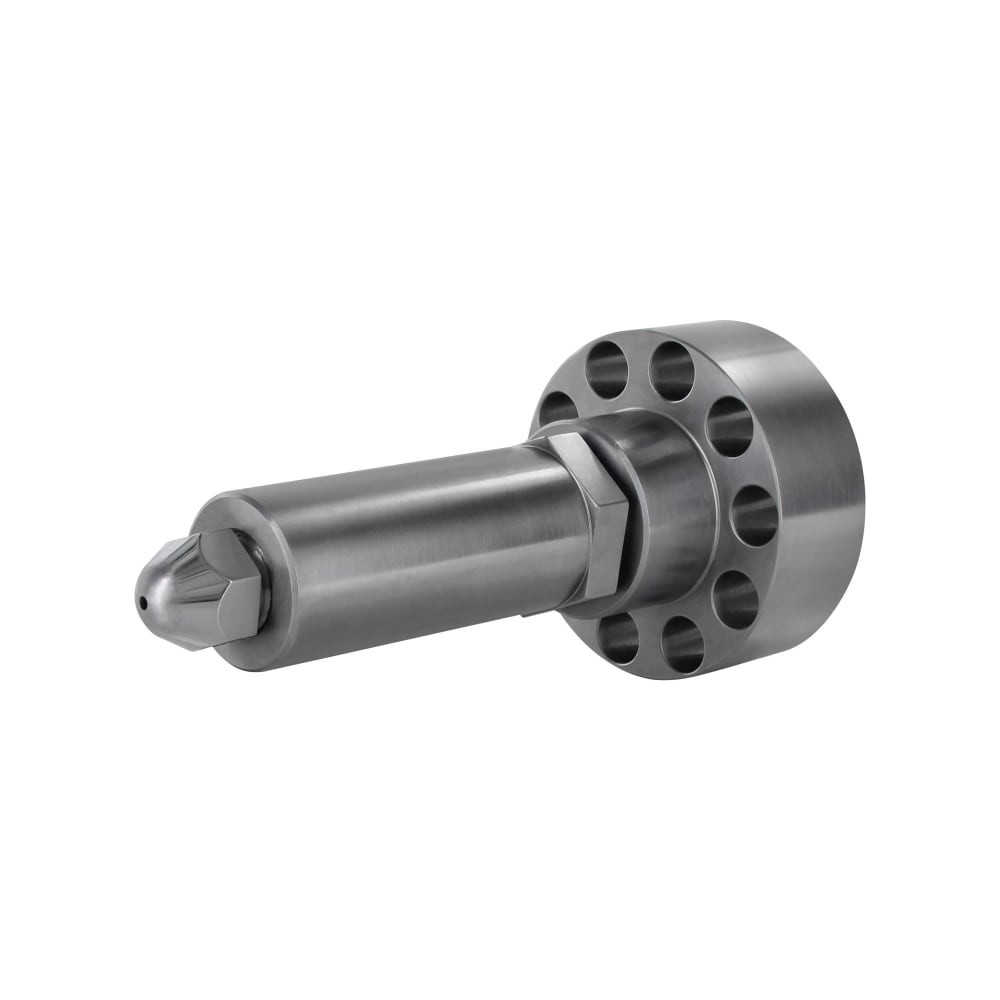

Chenhsong Injection Nozzle Tip Head-Components-Injection Molding Parts-Mold Components

Chenhsong Injection Nozzle Tip Head-Components-Injection Molding Parts-Mold Components

Materials: SACM645 & SKD61
Hardness: HRC56-60
Applied Machines: Haitian, Chenhsong, Fanuc, Haitian, Yizumi, Toshiba, JSW etc
Delivery Time: 7-10 days
12 Months Guarantee

Price: 20＄-200＄

Product Description:

Tech Introduction：

Nozzle Material	Typical Heat Treatment	Hardness (HRC/HV)	Suitable Plastics	Main Advantages	Typical Failure Mode	Expected Service Life*
38CrMoAlA Alloy Steel	Gas Nitriding	HV 900–1100	PP, PE, ABS, PS	Economical, widely used	Wear, corrosion	1–3 years
SACM645 (JIS)	Nitriding	HV 950–1100	General engineering plastics	Good toughness and nitriding response	Surface wear	2–4 years
SKD61 / H13 Tool Steel	Quenching + Tempering	HRC 48–52	PC, PMMA, PA	High thermal fatigue resistance	Cracking, abrasion	3–5 years
SKD11 / D2 Tool Steel	Vacuum Hardening + Tempering	HRC 58–62	Glass fiber reinforced plastics	Excellent wear resistance	Brittleness	3–6 years

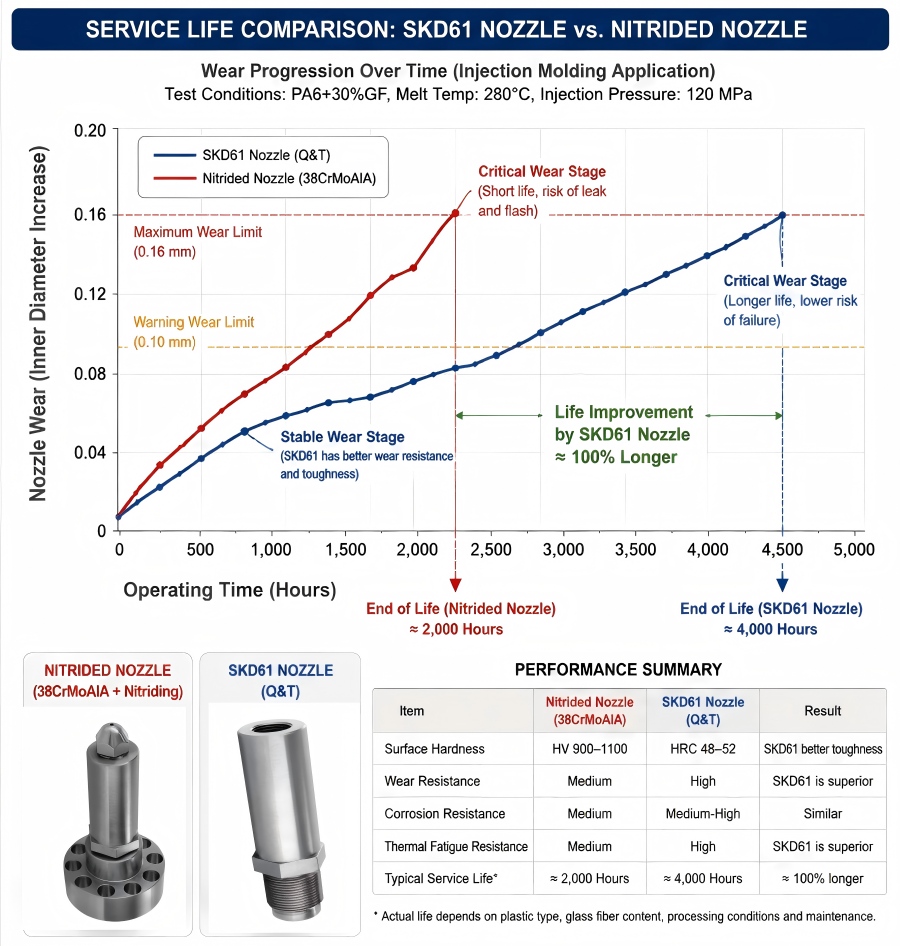

Nozzle service life.jpg

FAQS：

Q: When will you arrange the production?
A: We can arrange the production after order & drawings confirmation

Q: What is your factory delivery time ?
A: Standard delivery time is 20-25 days, if the screw's diameter is less than 50mm, the delivery time will be faster to 15-20 days.

Q: What is your accepted payment type?
A: T/T

Q: What logistic forwarder do you usually work with?
A: We work with UPS, TNT, FEDEX, SF and other logistric forwarders. Assigned your own forwarder for shipment is available.

Q: What is your warranty Time ?
A: 12 months when shipment on board

We manufacturing and offering Screw tip / Nozzle tips for :

Haitian Injection Molding Systems	ChenHsong Injection Molding Systems	Hwamda Injection Molding Systems
Yizumi Injection Molding Systems	Nissei Injection Molding Systems	TOYO Injection Molding Systems
Toshiba Injection Molding Systems	Borche Injection Molding Systems	Haida Injection Molding Systems
JSW Injection Molding Systems	Arburg Injection Molding Systems	Engel Injection Molding Systems
Krauss Maffei Injection Molding Systems	Battenfeld Extrusion Systems	Tederic Injection Molding Systems
Cincinatti Milacron Injection Systems	Kawaguchi Injection Molding Systems	Jwell Extrusion Systems
Sumitomo Injection Molding Systems	Tederic Injection Molding Systems	Fanuc Injection Molding Systems
Haixing Injection Molding System	FCS Injection Molding System
