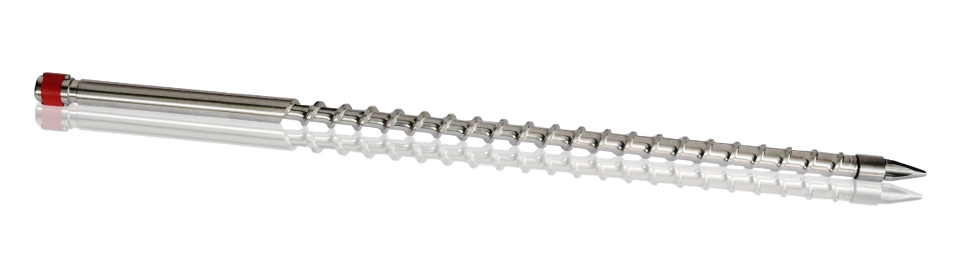

The suggestion & ways to choose a screw for injection molding systems

P2-6 (1) - 副本_副本.jpg

To choose the screw for an injection molding machine, you need to consider several factors such as the type of material being molded, the desired quality and properties of the finished product, and the specific requirements of the injection molding process. Here are some steps to help you choose the right screw:

  1. * The material: Determine the characteristics of the material you will be molding, including its viscosity, melting temperature, and flow behavior. Different materials require different screw designs.

  2. * Application: Identify the specific requirements of the end product, such as strength, appearance, and dimensional accuracy. These requirements will influence the selection of the screw design.

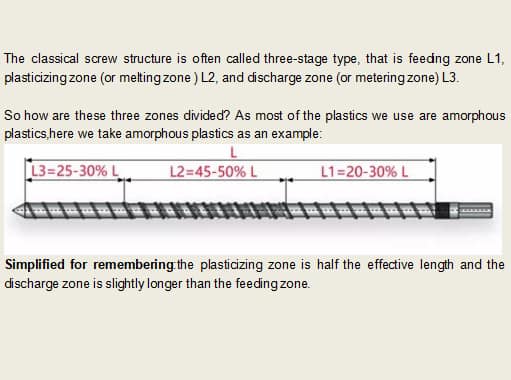

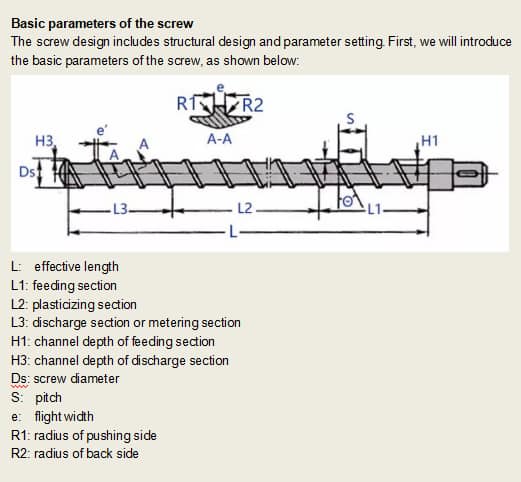

  3. * Screw type and geometry: Choose the appropriate screw type based on your material and application requirements. Common screw types include general-purpose screws, barrier screws, and mixing screws. The screw's geometry, including its length, pitch, and flight depth, should also be considered.

  4. * Compression ratio: Calculate the compression ratio, which is the ratio of the screw's feed zone depth to its metering zone depth. This ratio affects the melt quality and pressure generation during the injection process. A higher compression ratio is suitable for materials that require more shear and mixing.

  5. *  Feed hopper size: Determine the appropriate feed throat size based on the material's bulk density and processing rate. A larger feed throat allows for faster feeding, but it may lead to poor mixing and longer residence times.

  6. * Screw coating (hard chrome/TiN) or treatment: Consider whether a special coating or treatment is required for the screw, depending on the material being processed. For example, abrasive materials may require a hard chrome plating to enhance wear resistance.

  7. * Consult us: we can provide valuable insights and assist in selecting the most suitable screw for your injection molding machine.
